Запчасти Case IH 1670 (2-23A) - COLD START ASSISTANCE (01) - ENGINE

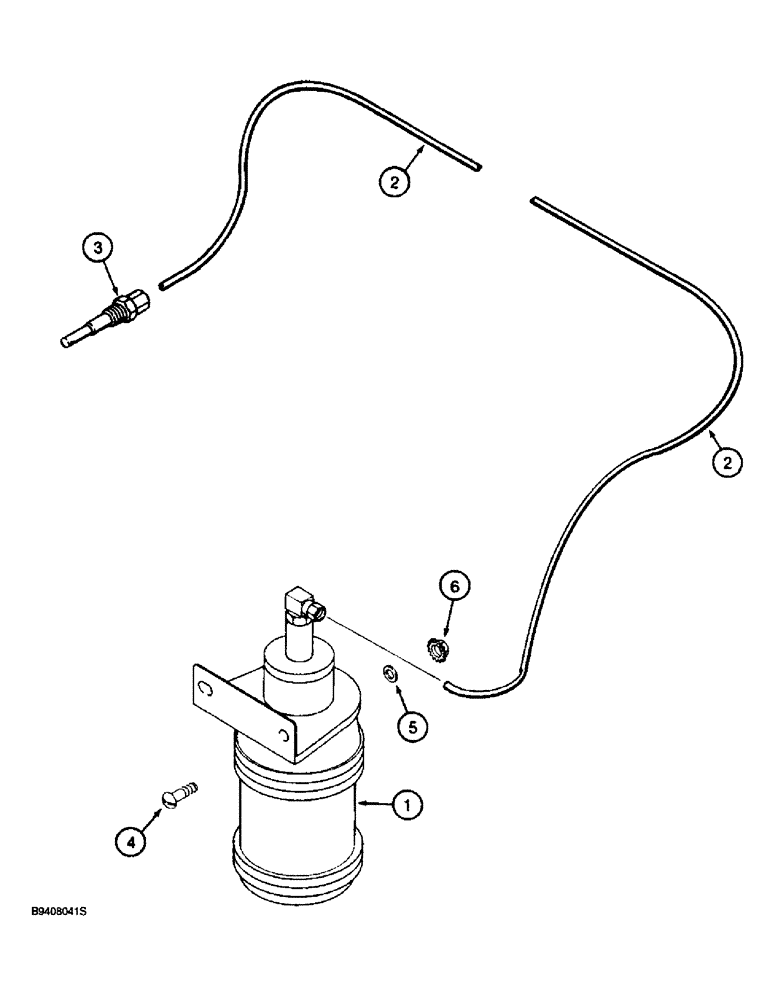

Схема запчастей Case IH 1670 - (2-23A) - COLD START ASSISTANCE (01) - ENGINE
1
3
2
5
4
6
2

Артикул

Название

Примечание

Количество

1

185552A2

SOLENOID

- ether injection, 12 volt (Replaces solenoid assembly 121842C91)

1шт.

2

A172361

TUBE

- 72 inch (1829 mm) long, cut from 1954063CX bulk tube, see below

1шт.

3

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

5

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

1954063CX

TUBE

- bulk, 1/8 (3) O.D. x 1200 inch (30480 mm) long

1шт.

Выбрано товаров: 7
