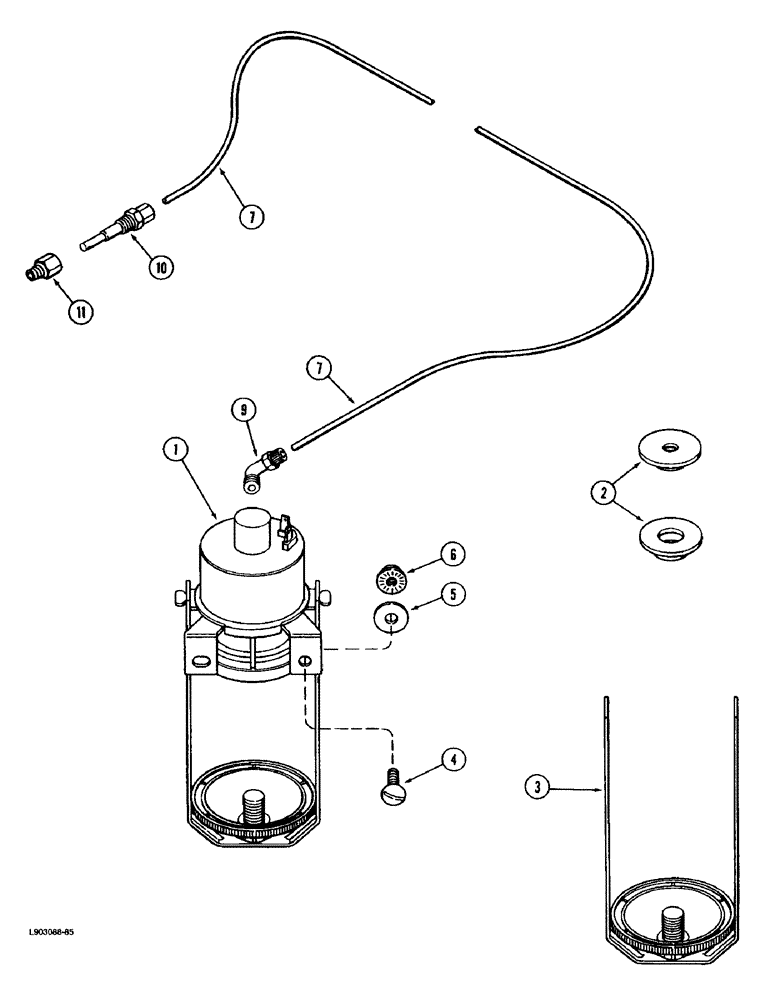

Запчасти Case IH 1670 (2-22) - COLD START ASSISTANCE (01) - ENGINE

1

121842C91

SOLENOID SWITCH

SOLENOID ASSEMBLY - ether injection, no longer used order solenoid assembly, parts list Figure 2-23A, Includes: Ref. 2 and 3

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

3

121851C1

RETAINER

- ether start fluid container

1шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

5

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

A172361

TUBE

- 1/8 O.D. x 72 inch long, solenoid to manifold, cut from 1954063CX bulk tubing, see below

1шт.

9

289970C91

FITTING

ELBOW - 90 degree, special, 1/8-27 PT x 1/8 inch tube

1шт.

10

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

11

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

1954063CX

TUBE

- bulk, 1/8 (3) O.D. x 1200 inch (30480 mm) long

1шт.
