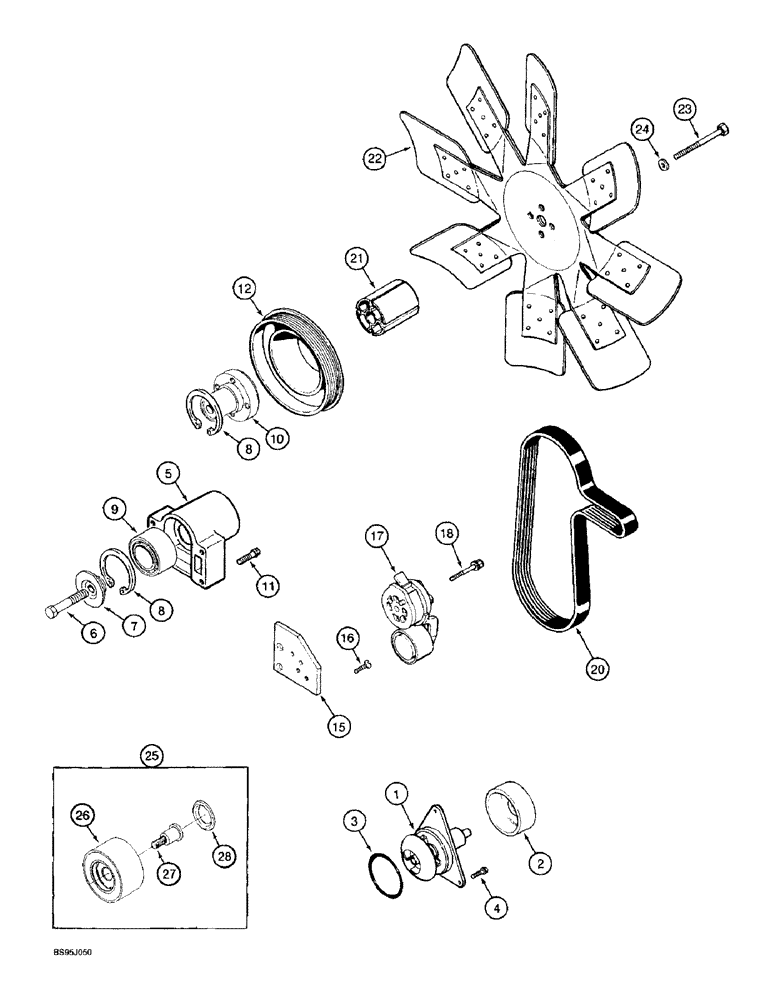

Запчасти Case IH 1670 (2-14) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE (01) - ENGINE

A77704

PUMP, WATER

KIT - water pump, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

1670 6TA-830 ENGINE (S/N JJC0080540 & AFTER) (8/90-), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT - fan, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

4шт.

12

J914461

PULLEY

- fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

15

J905935

SUPPORT

BRACKET - mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, hex socket, special, 8 - 1.25 x 25 mm

2шт.

17

J918944

BELT TENSIONER

TENSIONER - belt, replaces J914086 tensioner

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

20

J911574

V-BELT,27.92mm W x 1587.5mm L, 8 Ribs

Fan 3.56 mm W x 1587.50 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long

1шт.

22

A189206

FAN

- engine

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

25

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 17

1шт.

26

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

27

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.
