Запчасти Case IH 1670 (2-12) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

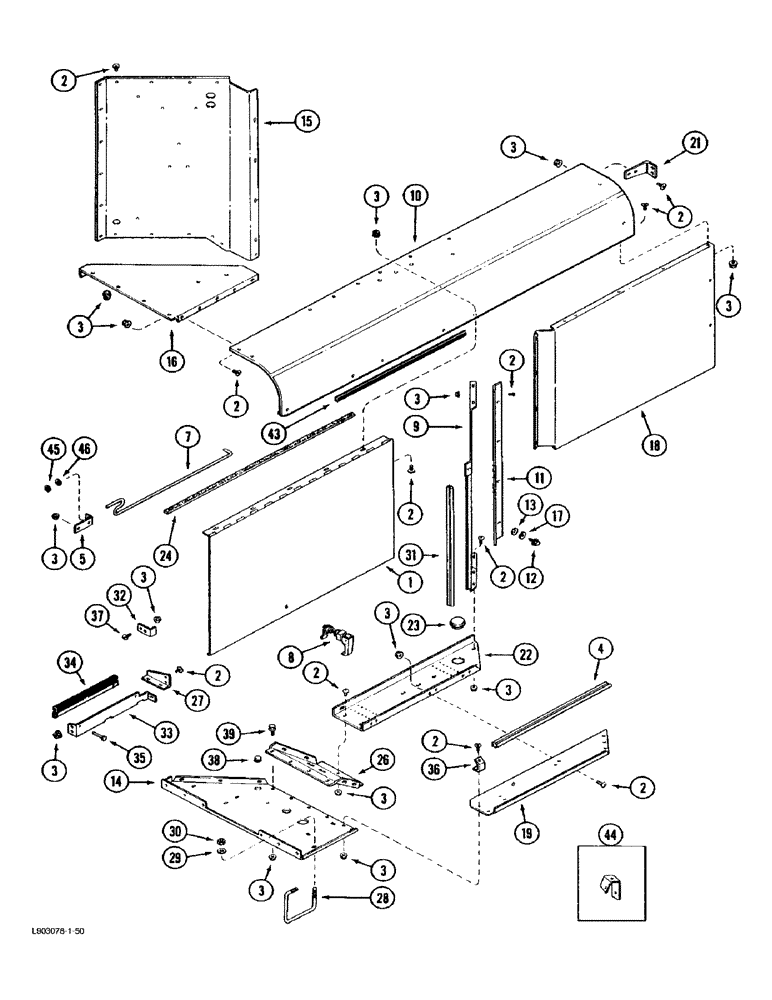

Схема запчастей Case IH 1670 - (2-12) - ROTARY AIR SCREEN CHUTE (01) - ENGINE
29
43
3
13
17
3
3
23
2
2
21
1
28
2
35
22
11
14
34
32
3
46
4
38
2
10
3
31
5
19
3
2
36
18
39
3
7
2
33
3
2
44
2
27
2
15
16
9
37
3
3
30
24
8
12
3
3
2
45
26
3

Артикул

Название

Примечание

Количество

1

1979861C2

TRAP DOOR

DOOR - radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

84шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

92шт.

4

1347459C1

SEAL

- radiator access door bottom, 916 mm long

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

7

1979919C1

STEM

ROD - door

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1979856C2

DEFLECTOR

- screen chute

1шт.

10

1977122C5

CHUTE (DOWNWARD)

CHUTE - air screen (Replaces chute 1977122C4)

1шт.

11

1970200C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

11шт.

14

1324919C3

SHEET

SUPPORT - bottom rear

1шт.

15

1979227C1

SHEET

SUPPORT - screen chute, rear

1шт.

16

1541858C2

SUPPORT

- screen, upper (Replaces support 1324920C2)

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

1979854C1

SHEET ASSY.

PANEL - radiator inlet

1шт.

19

1979853C2

CHUTE (DOWNWARD)

CHUTE - bottom rear outlet

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C3

PROTECTION PLATE

SUPPORT - radiator clean out

1шт.

23

1302758C1

PLUG

- plastic, 89 mm O.D.

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - hinge, 37-1/2 inch, cut from 1338148C1 bulk seal, see below

1шт.

26

1979728C2

SUPPORT

- chute, lower rear

1шт.

27

1968548C1

SUPPORT

BRACKET - chute, discharge side

1шт.

28

1979918C1

HANDLE

- assist

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

30

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10 (Replaces nut 905263R1)

4шт.

31

1347460C1

DOOR SEAL,648mm L

- 25-1/8 inch (648 mm) long

2шт.

32

1347430C1

SUPPORT

BRACKET - latch retainer

1шт.

33

1968546C1

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 3/16 x 5/16 inch (Replaces rivet 196880C1)

2шт.

36

561915R1

BRACKET

- lamp

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

2шт.

37

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

2шт.

38

1970461C1

GROMMET

- rubber

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

43

1315670C3

SEAL

SEAL - 29 inch (738 mm) long, radiator top and bottom, if used

2шт.

43

128719A1

SEAL

SEAL - radiator top and bottom, 885 mm, cut from F43996 bulk seal, see below, if used

2шт.

44

1347199C2

GUIDE

- radiator door

1шт.

45

100-1537

SNAP RING,#37, Ext

Ring, Snap, (Replaces ring 437157R1) #37, Ext

1шт.

46

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

1шт.

1338148C1

SEAL

- bulk, 50 foot roll

1шт.

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - bulk, 932 mm roll

1шт.

Выбрано товаров: 45
