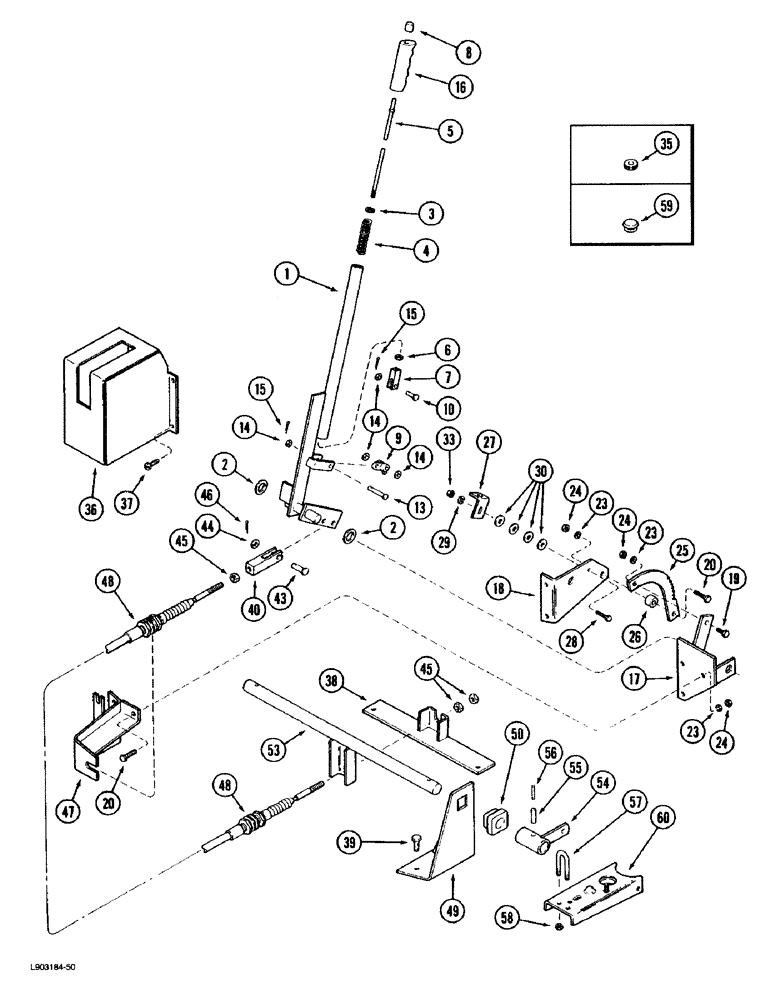

Запчасти Case IH 1670 (7-18) - HAND BRAKE (5.1) - BRAKES

1

1311003C1

LEVER

- hand brake

1шт.

2

3176135R1

WASHER

- flat, 21 x 32 x 1.5 mm

1шт.

3

794236R2

WASHER

- stop

1шт.

4

51200184

SPRING

- tension

1шт.

5

1311011C1

ROD

- brake lever

1шт.

6

933472R1

JAM NUT

- hex jam, 6 mm

1шт.

7

3014148R2

ADJUSTABLE CLEVIS

CLEVIS - lever

1шт.

8

790571R1

BUTTON

- push

1шт.

9

1311012C1

PAWL

- brake

1шт.

10

932880R1

PIN

- headed, 6 x 18 mm

1шт.

13

932421R1

PIN

- headed, 6 x 40 mm

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

15

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

16

790933R2

HANDLE

- brake

1шт.

17

1311015C1

SUPPORT

- handle

1шт.

18

1311019C1

SUPPORT

- axle

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

25

1311020C1

SECTOR

- brake

1шт.

26

1311021C1

SPACER

- sector

1шт.

27

1311022C2

SUPPORT

- switch

1шт.

28

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch (Replaces washer 24497R1)

4шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

35

52118D

GROMMET

- rubber

1шт.

36

1311023C1

COVER

- lever linkage

1шт.

37

263-14710

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - self-tapping, pan head slotted, 1/4-14 x 5/8 inch

4шт.

38

1311084C1

SUPPORT

- cable upper

1шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

40

3014150R1

CLEVIS

- 10 mm

1шт.

43

932440R1

PIN

- headed, 10 x 28 mm

1шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

45

933449R1

JAM NUT

- hex jam, 10 mm

3шт.

46

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , If used 1/8" x 3/4"

1шт.

47

1304032C3

SUPPORT

- cable

1шт.

48

1311091C1

CABLE

- brake

1шт.

49

1311078C1

SUPPORT

- left-hand

1шт.

49

1311079C1

SUPPORT

- right-hand (Shown)

1шт.

50

3173452R1

FLANGED BEARING

- pivot

2шт.

53

1311081C1

SHAFT

- lower drive

1шт.

54

1311075C1

HUB

- brake drive

2шт.

55

Q2932

LOCK PIN,M8 x 36, Slotted

PIN, LOCK, M8 x 36, Slotted

2шт.

56

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

PIN, LOCK, , M5 x 36, Slotted

2шт.

57

1311351200184C1

BOLT - U type

2шт.

58

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

4шт.

59

353-412

PLUG,Dome, 1.093" hole, Nylon

- button, 1-3/32 inch (For hole in left-hand console top)

1шт.

60

196496C3

LEVER

- brake

2шт.
