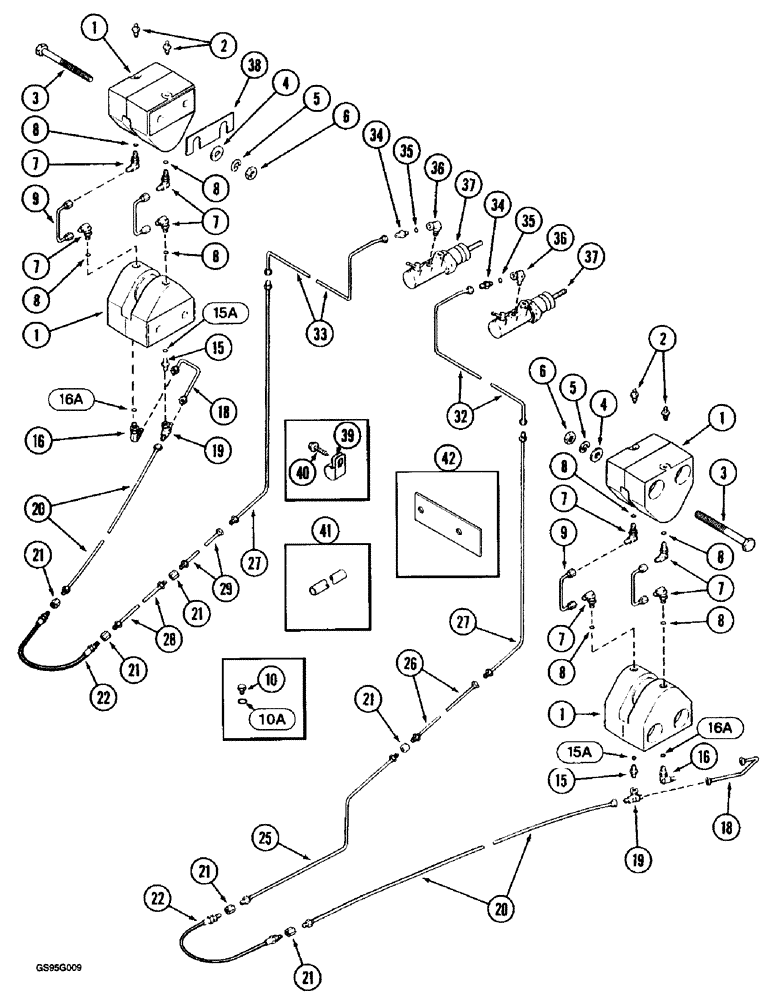

Запчасти Case IH 1670 (7-12) - FAILSAFE BRAKES (5.1) - BRAKES

1

1347388C1

BRAKE ASSY.

BRAKE ASSEMBLY - failsafe, Includes: Ref. 3 - 33

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - brake power

1шт.

4

NSS

NOT SOLD SEPARAT

BLEEDER - power plate

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - protective

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

Part of Brake Bearing Kit P/N 1347458C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - bearing retaining

1шт.

Part of Brake Bearing Kit P/N 1347458C1

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - hex flange retaining

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - brake plate

1шт.

Part of Brake Seal Kit P/N 1347456C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Brake Seal Kit P/N 1347456C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - brake plate

1шт.

Part of Brake Seal Kit P/N 1347456C1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Brake Seal Kit P/N 1347456C1

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - brake housing

1шт.

18

NSS

NOT SOLD SEPARAT

DISC - brake, primary

1шт.

Part of Brake Stack Kit P/N 1347457C1

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - disc compression

10шт.

Part of Brake Stack Kit P/N 1347457C1

1шт.

20

NSS

NOT SOLD SEPARAT

DISC - brake, stationary

6шт.

Part of Brake Stack Kit P/N 1347457C1

1шт.

21

NSS

NOT SOLD SEPARAT

DISC - brake, rotating

5шт.

22

NSS

NOT SOLD SEPARAT

PIN - torque

2шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - brake, splined

1шт.

27

NSS

NOT SOLD SEPARAT

GASKET - brake housing

1шт.

Part of Brake Seal Kit P/N 1347456C1

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - brake

1шт.

27

NSS

NOT SOLD SEPARAT

GASKET - brake housing

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - disc compression

8шт.

29

NSS

NOT SOLD SEPARAT

SPRING - disc compression

8шт.

Part of Brake Stack Kit P/N 1347457C1

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

Part of Brake Bearing Kit P/N 1347458C1

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Brake Bearing Kit P/N 1347458C1

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - bearing oil

1шт.

Part of Brake Bearing Kit P/N 1347458C1

1шт.

1347456C1

SEAL KIT

KIT - brake seal, Includes: Ref. 12, 13, 14, 15 and 16

1шт.

1347457C1

GASKET KIT

KIT - brake stack (Includes Ref. 18-22, and 29

1шт.

1347458C1

GASKET KIT

KIT - brake bearing, Includes: Ref. 6, 7, 30, 31 and 33

1шт.

1304278C1

GASKET

KIT - failsafe brake gasket, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - failsafe brake

2шт.
