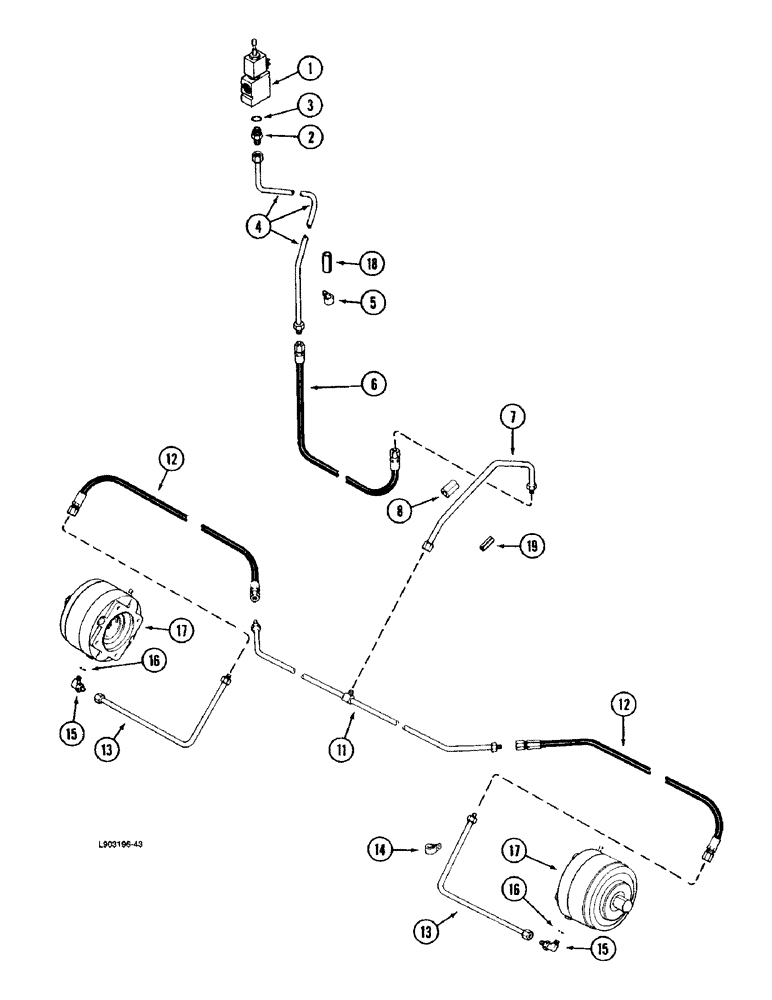

Запчасти Case IH 1670 (7-10) - FAILSAFE BRAKE SYSTEM (5.1) - BRAKES

1

1346049C1

VALVE

- rear brake

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

1304869C1

HYD TUBE,0.375" OD, 24.4, 5.8" Length

TUBE - rear brake pressure

1шт.

5

589980R2

CLIP

CLAMP - tube retaining

1шт.

6

1317157C1

HOSE ASSY.

HOSE - rear brake pressure

1шт.

7

1304870C1

HYD TUBE,0.375" OD, 14.5, 5.3" Length

TUBE - rear brake pressure

1шт.

8

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

1шт.

8

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

1шт.

11

1304880C1

HYD TUBE

TUBE - rear brake pressure

1шт.

12

1310708C1

HOSE ASSY.

HOSE - rear brake pressure

2шт.

13

1304894C1

HYD TUBE,0.25" OD, 11.4, 8.25" Length

TUBE - rear brake pressure

2шт.

14

589980R2

CLIP

CLAMP - tube retaining

1шт.

15

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj. O-ring boss, Includes: Ref. 16

2шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

17

1347388C1

BRAKE ASSY.

BRAKE ASSEMBLY - failsafe, parts list figure 7-12

2шт.
