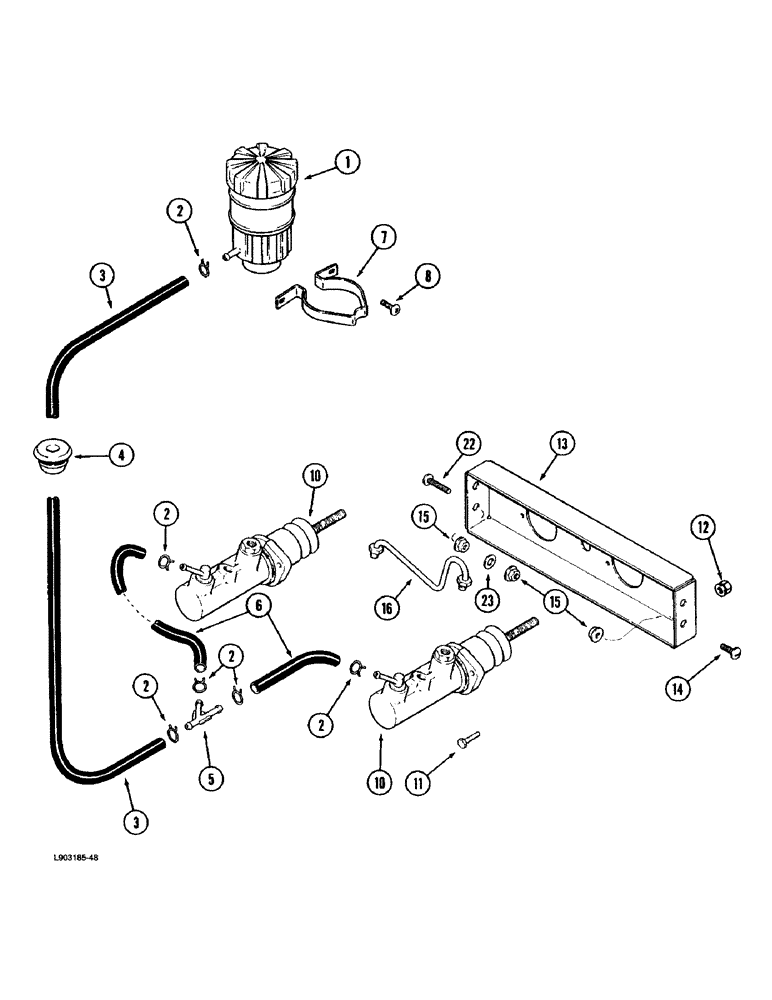

Запчасти Case IH 1670 (7-08) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

Ref no. 1 - cap no. is k964488.

1шт.

2

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, (Replaces clamp 210511R1) #8, 1/2", Spring

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- brake hose

1шт.

5

1285312C1

TEE

FITTING - stem, Y-type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- reservoir mounting

1шт.

8

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch, polyseal

2шт.

10

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY- master, parts list figure 7-16

2шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

13

1327561C2

SUPPORT

- master brake cylinder

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

14

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

1281885C1

PIPE

TUBE - equalizer

1шт.

22

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
