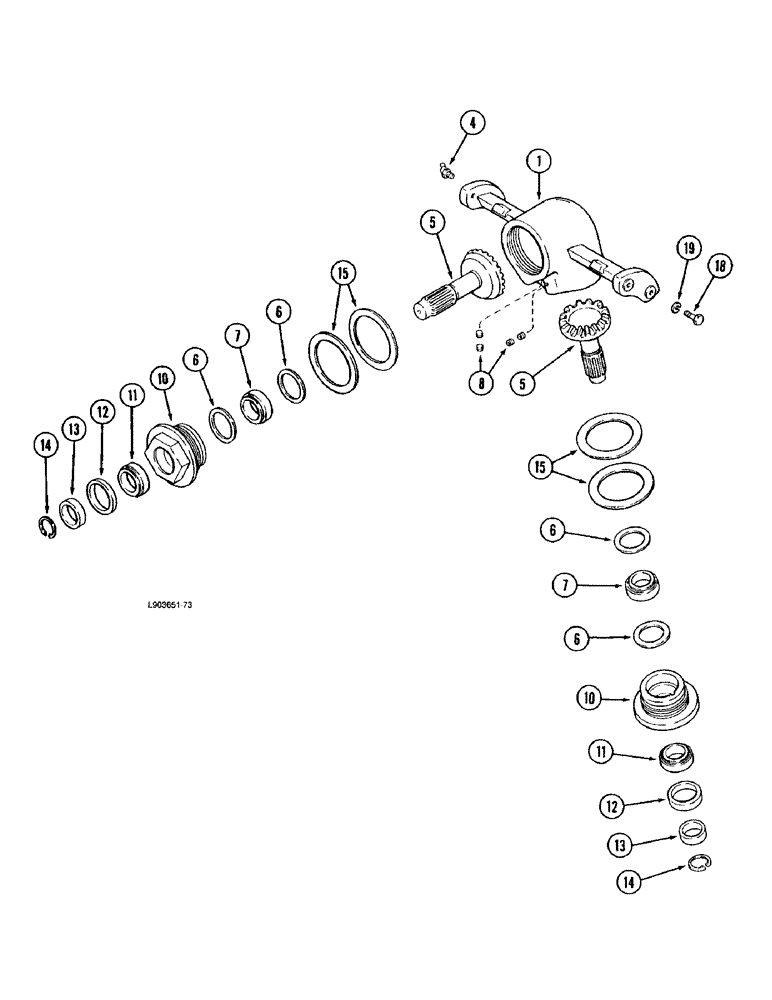

Запчасти Case IH 1670 (9E-32) - UNLOADER UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER

1347351C1

HOUSING

ASSEMBLY - upper gear, unloader, Includes: Ref. 1 - 15

1шт.

1347351C2R

REMAN-GEARBOX

1670 (S/N JJC0080540 & AFTER) (8/90-), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - upper gear (Order 1347351C1)

1шт.

4

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

5

1347260C1

PINION

GEAR - upper unloader housing, 18 teeth

2шт.

6

607147R1

WASHER

WASHER - bearing

4шт.

7

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- upper gear

2шт.

8

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW - hex socket set, 1/4 NC x 5/16 inch

4шт.

10

1347247C1

HOUSING

- gear bearing

2шт.

11

1347431C1

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

BEARING - tapered roller

2шт.

12

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

- bearing housing oil

2шт.

13

1347312C1

RETAINER

- gear housing

2шт.

14

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

15

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

- upper bearing

4шт.

18

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.
