Запчасти Case IH 1670 (9E-24) - UNLOADER UPPER AUGER (17) - GRAIN TANK & UNLOADER

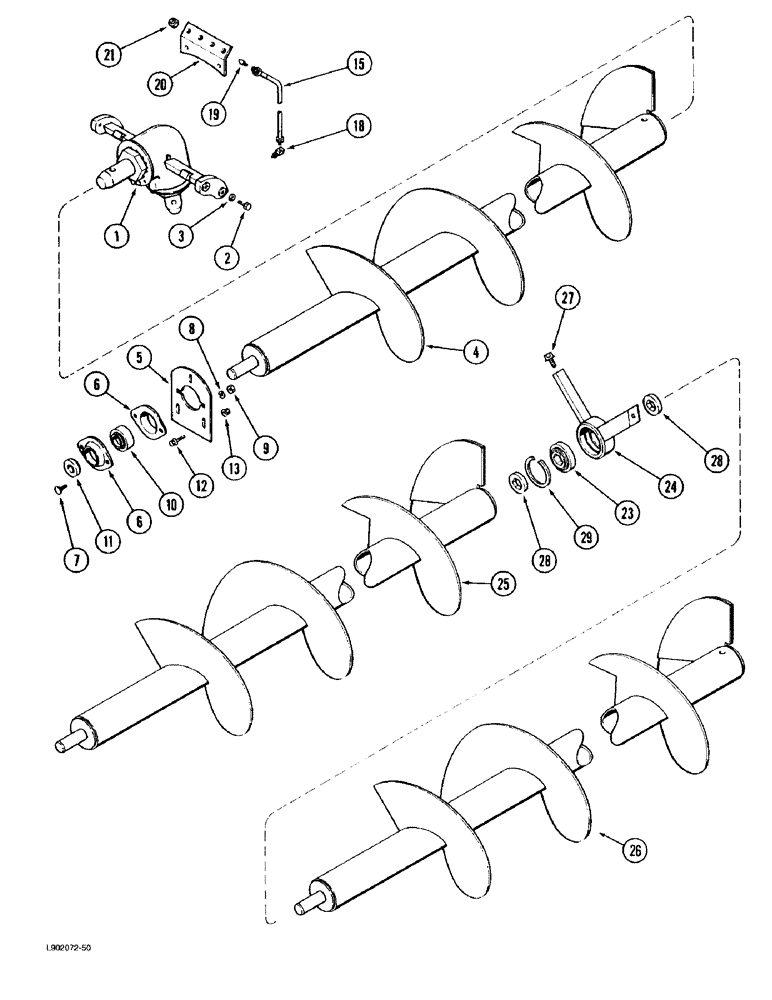

Схема запчастей Case IH 1670 - (9E-24) - UNLOADER UPPER AUGER (17) - GRAIN TANK & UNLOADER
27
5
3
26
28
20
11
8
29
13
15
18
21
6
2
7
4
28
10
19
23
25
1
12
9
6
24

Артикул

Название

Примечание

Количество

1

1347351C1

HOUSING

ASSEMBLY - unloader upper gear, parts list figure 9E-32

1шт.

1347351C2R

REMAN-GEARBOX

1670 (S/N JJC0080540 & AFTER) (8/90-), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

1317935C1

AUGER

- unloader, one piece, 172 inch long

1шт.

5

182838C1

SUPPORT

- outer bearing

1шт.

6

50591

FLANGE,52mm

- outer bearing (Replaces flange F9417)

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - ball, unloader auger

1шт.

11

564853R11

COLLAR

- locking, bearing

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Grease, If Used 0.14" ID x 22.00"

2шт.

15

937781R92

HOSE,3.02mm ID x 686mm L

Grease, If Used 3.56 mm ID x 686.00 mm

1шт.

15

937782R92

HOSE,3.02mm ID x 787mm L

Grease, if used 3.56 mm ID x 787.00 mm

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch (Replaces fitting 21347R1)

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

20

1347449C1

SUPPORT

PLATE - mounting, lubrication hose

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

- special

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball, unloader split auger only

1шт.

24

1317859C1

SUPPORT

- bearing, unloader split auger only

1шт.

25

1317680C2

AUGER

- unloader, rear split auger only, 172 inch long (Replaces auger 1317680C1 )

1шт.

25

1321147C2

AUGER

- unloader, rear split auger only, 208 inch long (Replaces auger 1321147C1)

1шт.

26

1317891C1

AUGER

- unloader, front split, 172 inch long

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

28

1277949C1

SPACER

- unloader split auger only

4шт.

29

360936R1

RING

- snap, auger bearing

1шт.

Выбрано товаров: 30
