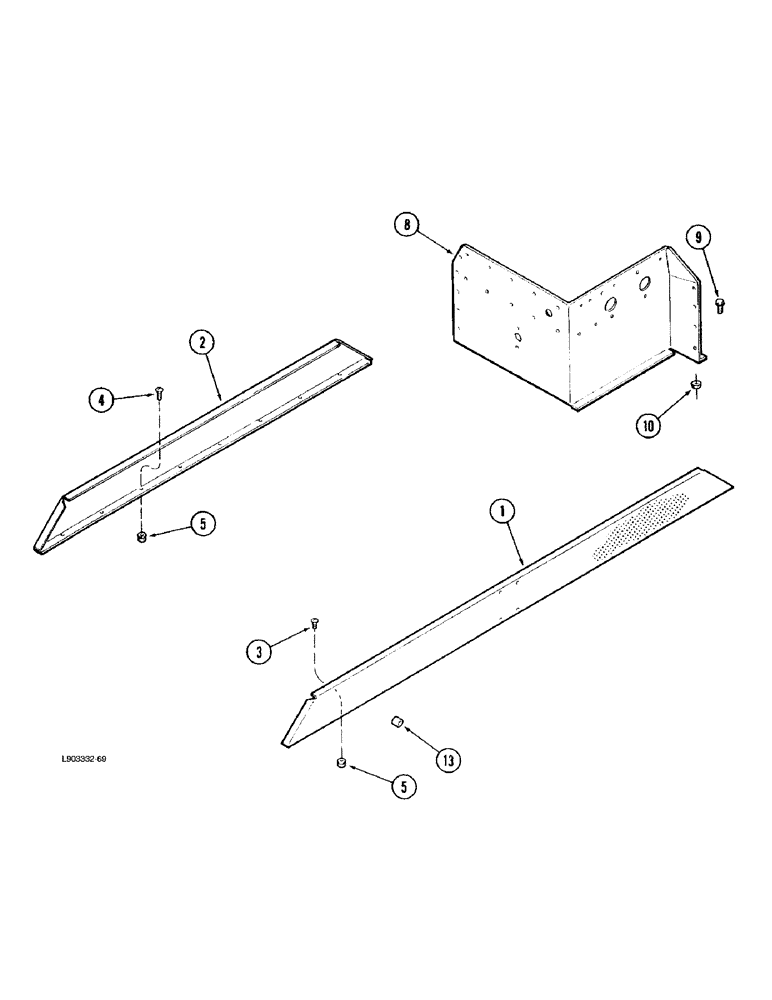

Запчасти Case IH 1670 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

183157C2

SUPPORT

- grain tank, front extension, (Replaces support 183157C1)

1шт.

2

183276C2

SUPPORT

- grain tank, rear extension

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

11шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

22шт.

8

1317644C1

SUPPORT

- grain tank, center extension

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

13

33847A

SPACER,1/4" Pipe x 1 13/16"

- sensor support, 1/4 x 1-13/16 inch, if used

4шт.
