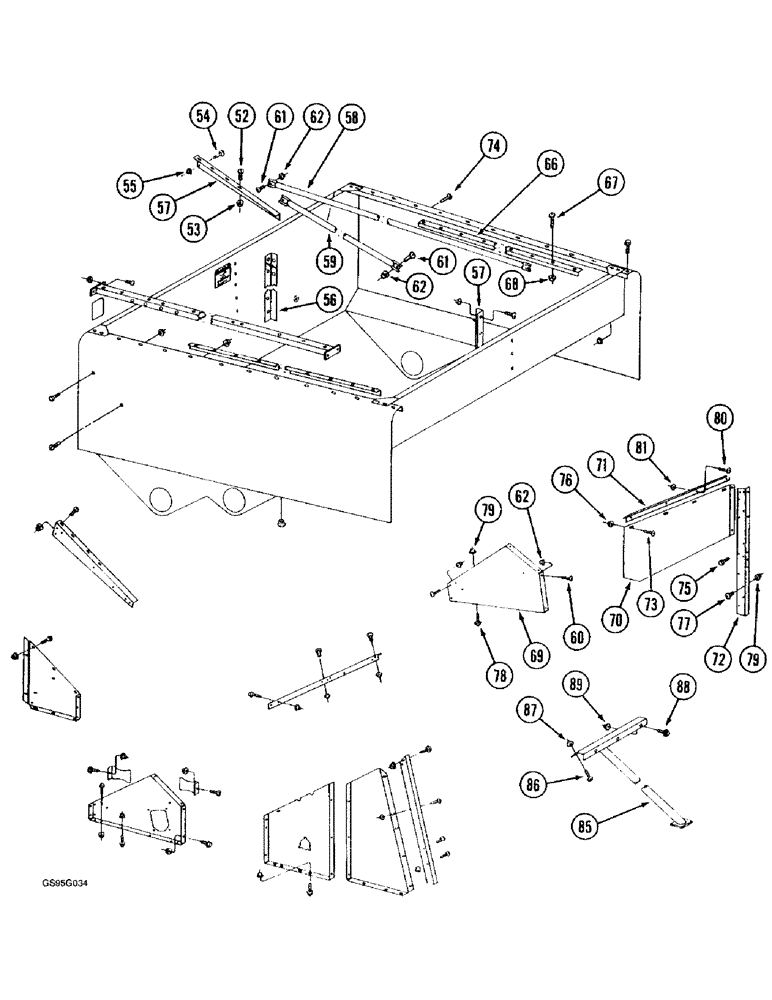

Запчасти Case IH 1670 (9E-04) - GRAIN TANK, (CONT) (17) - GRAIN TANK & UNLOADER

51

192769C2

SUPPORT

- grain tank, diagonal right-hand, continued from 9E-2

1шт.

52

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

52

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

53

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

55

231-5146

FLANGE NUT,3/8"-16

4шт.

56

192765C1

SUPPORT

ANGLE - grain tank tie, front

1шт.

57

181682C2

SUPPORT

ANGLE - grain tank tie, rear

1шт.

58

192767C2

STEM

ROD - grain tank

1шт.

59

188414C3

ROD

ANGLE - grain tank tie (Replaces angle 188414C2)

1шт.

60

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

61

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

62

231-5146

FLANGE NUT,3/8"-16

1шт.

66

195398C3

SUPPORT

ANGLE - grain tank, top right-hand

1шт.

67

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

12шт.

67

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

12шт.

68

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

69

192772C2

SUPPORT

- grain tank, center right-hand

1шт.

70

192474C1

SUPPORT

- grain tank, right-hand

1шт.

71

192774C1

SUPPORT

- grain tank, lower right-hand rear

1шт.

72

181392C2

SUPPORT

- grain tank, vertical, right-hand rear

1шт.

73

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

74

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

74

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

75

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

16шт.

76

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

77

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

78

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

79

231-5146

FLANGE NUT,3/8"-16

1шт.

80

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

1шт.

81

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

85

186118C1

SUPPORT ASSY.

SUPPORT - grain tank, rear

1шт.

86

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

5шт.

86

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

5шт.

87

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

88

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

89

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
