Запчасти Case IH 1670 (2-06) - COOLANT RECOVERY SYSTEM (01) - ENGINE

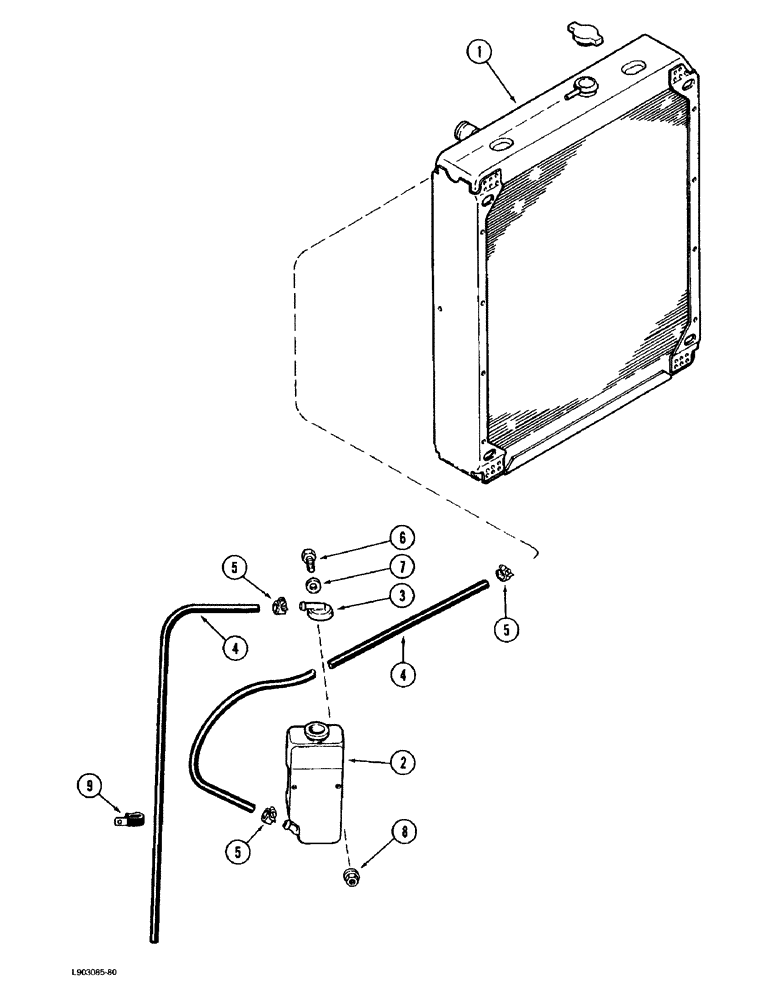

Схема запчастей Case IH 1670 - (2-06) - COOLANT RECOVERY SYSTEM (01) - ENGINE
5
4
4
8
5
9
7
2
5
1
3
6

Артикул

Название

Примечание

Количество

1

A189470

RADIATOR

ASSEMBLY - cooling system, parts list Figure 2-2

1шт.

2

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HEATER HOSE - Reservoir to radiator overflow 8.30 mm ID x 1175.00 mm, SAE J30

2шт.

4

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

7.50 mm ID, 8.30 mm ID x 1000.00 mm, SAE J30 - Reservoir to Radiator Overflow, If Used

2шт.

5

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia.

3шт.

6

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

4шт.

7

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, retaining

1шт.

Выбрано товаров: 10
