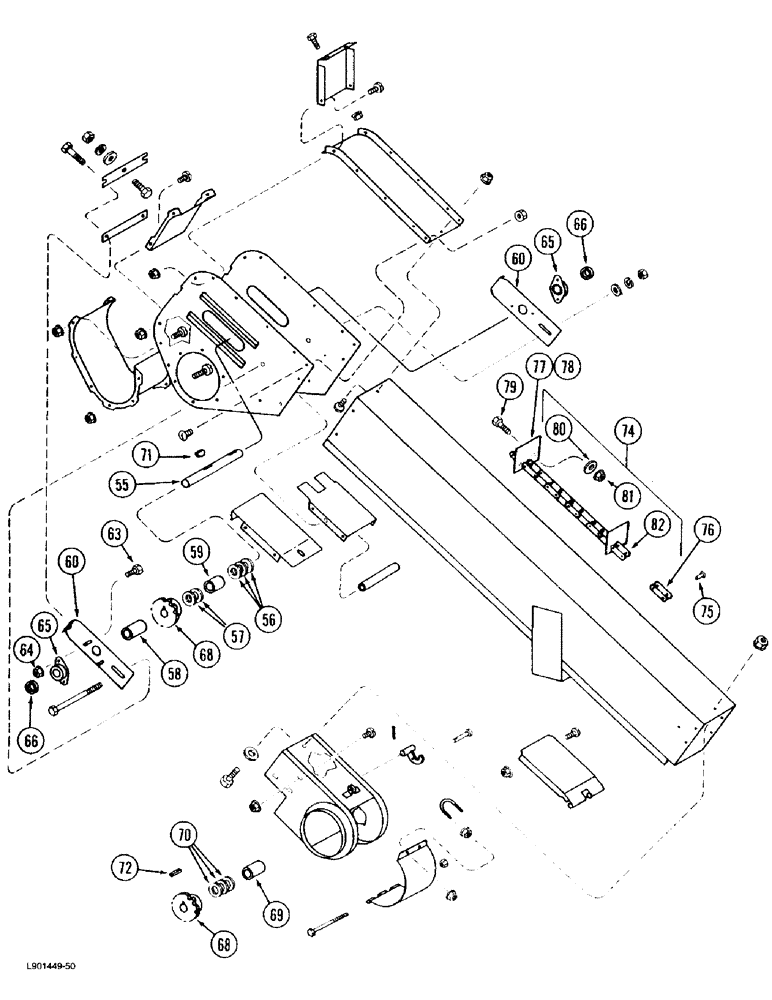

Запчасти Case IH 1670 (9D-20) - TAILINGS ELEVATOR, (CONT) (16) - GRAIN ELEVATORS & AUGERS

55

191785C1

SHAFT

- sprocket, head, continued from 9D-18

1шт.

56

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

57

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

58

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket, LH 1" Pipe x 2 3/4"

1шт.

59

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket, RH 1" Pipe x 1 9/16"

1шт.

60

181364C1

SUPPORT

- shaft

2шт.

63

186056C1

BOLT

- support

4шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

65

214490C91

BALL BEARING,25.4mm ID

BEARING - ball

2шт.

66

455102R21

COLLAR

- locking, bearing

2шт.

68

168683C1

SPROCKET

- chain, conveyor

2шт.

69

21696R1

SPACER,1" Pipe x 1 3/8"

- pipe, 1 ID x 1-3/8 inch

1шт.

70

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

1шт.

71

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

72

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

74

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 75 - 82

1шт.

75

185315C1

RIVET

- tubular, 3/8 x 5/8 inch, used with rubber flight assembly 1303123C91

2шт.

76

241-15113

LINK,41.4mm Pitch

LINK - connecting, single pitch, No. C550, 1-5/8 inch pitch

1шт.

76

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

76

241-12113

LINK,Chain, 41.4mm Pitch

LINK - roller, single pitch, No. C550, 1-5/8 inch pitch (Replaces link 631253R91)

1шт.

76

241-18113

LINK,41.4mm Pitch

LINK - offset, single pitch, No. C550, 1-5/8 inch pitch

1шт.

77

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - conveyor, rubber, Includes: Ref. 77

1шт.

77

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - conveyor, steel, two piece, service only, does not include conveyer, Includes: Ref. 77

1шт.

77

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

77

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

79

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

80

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Includes: Ref. 81

2шт.

81

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

82

NSS

NOT SOLD SEPARAT

LINK - attaching, rubber flight, order 1303123C91, Ref. 77 above

1шт.

82

150722C91

LINK

- attaching, steel flight

1шт.
