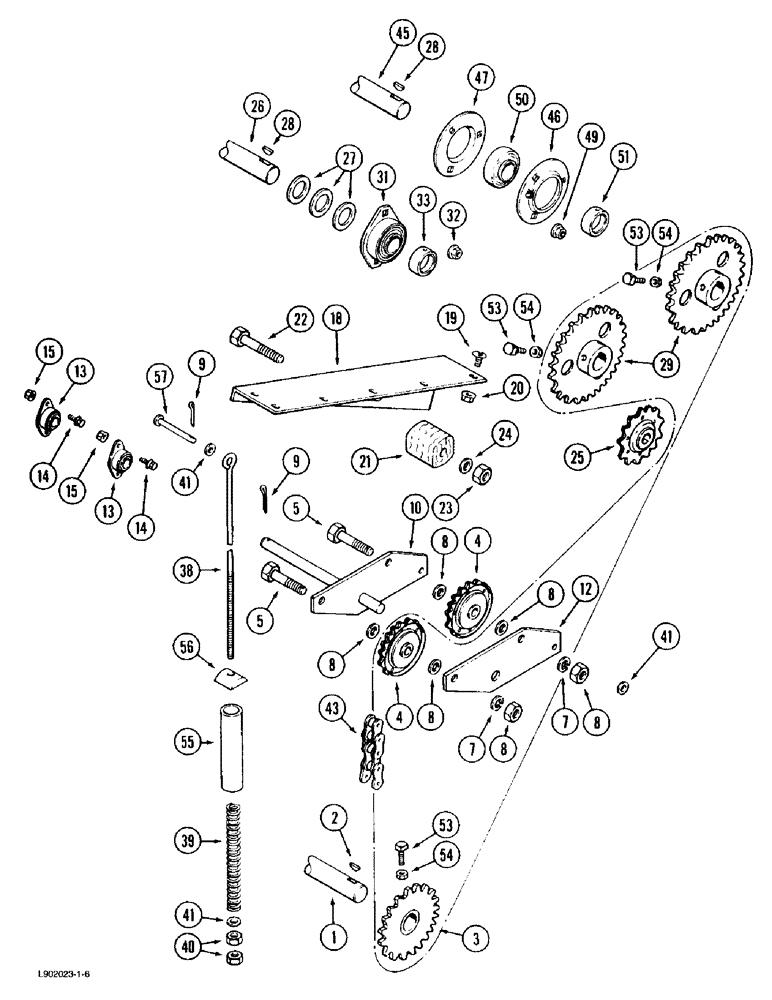

Запчасти Case IH 1670 (9D-12) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- drive, jackshaft

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

- drive, 25 teeth

2шт.

4

631905R91

SPROCKET

- idler drive, 17 teeth

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1345064C1

SUPPORT

- idler sprocket

1шт.

12

1345066C1

PLATE

- tightener support

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING - flange

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

1317476C2

HOUSING

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

2шт.

26

1317429C1

SHAFT

- headshaft sprocket

1шт.

25

1319759C1

DRIVE SPROCKET

SPROCKET - idler

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

- headshaft, 32 teeth

2шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

- bearing, with set screw

1шт.

38

1345005C1

BOLT,3/8" - 16 x 815mm

ROD - chain tightener

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

42

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , If used 3/32" x 3/4"

1шт.

42

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , If used 1/8" x 3/4"

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 259 links from Number 50 chain, 3 connector links 1310D and 2 offset links 1315D.

1шт.

45

1318912C1

AUGER

- delivery, parts list figure 9D-2

1шт.

46

670375R11

FLANGE

- bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

49

231-5146

FLANGE NUT,3/8"-16

3шт.

50

156011C92

BALL BEARING

BEARING - ball

1шт.

51

557995R11

COLLAR

- bearing, with set screw

1шт.

53

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point

4шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

4шт.

55

181119C1

SPACER

- drive rod

1шт.

56

194652C1

PIVOT

- rod

1шт.

57

427-6240

CLEVIS PIN,9.53mm OD x 61.11mm L

PIN - clevis, 3/8 x 2-13/32 inch, hardened, if used

1шт.

57

22752R1

SPLIT PIN/SAFETY PIN

PIN - headed, 3/8 x 2-1/4 inch, if used

1шт.
