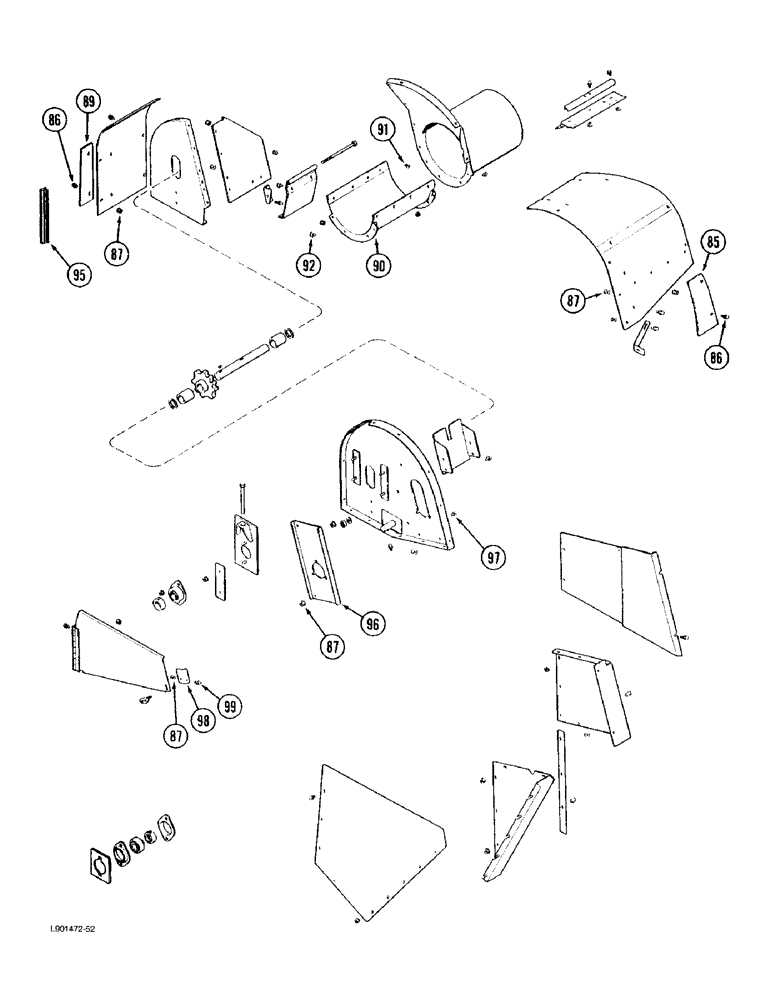

Запчасти Case IH 1670 (9D-10) - HORIZONTAL GRAIN ELEVATOR HEAD, (CONT) (16) - GRAIN ELEVATORS & AUGERS

85

1321231C1

PLATE

- sealing, front, continued from 9D-08

1шт.

86

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

87

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

31шт.

89

1321232C1

PLATE

- sealing, rear

1шт.

90

1321130C1

TROUGH

- auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

92

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

95

1321262C1

SEAL

- flanged

2шт.

96

1321129C1

PLATE

SUPPORT - bearing, auger, right-hand

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

98

1317792C2

ANGLE

- door

1шт.

99

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.
