(2-04) - RADIATOR BAFFLE SUPPORTS

Запчасти Case IH 1670 (2-04) - RADIATOR BAFFLE SUPPORTS (01) - ENGINE

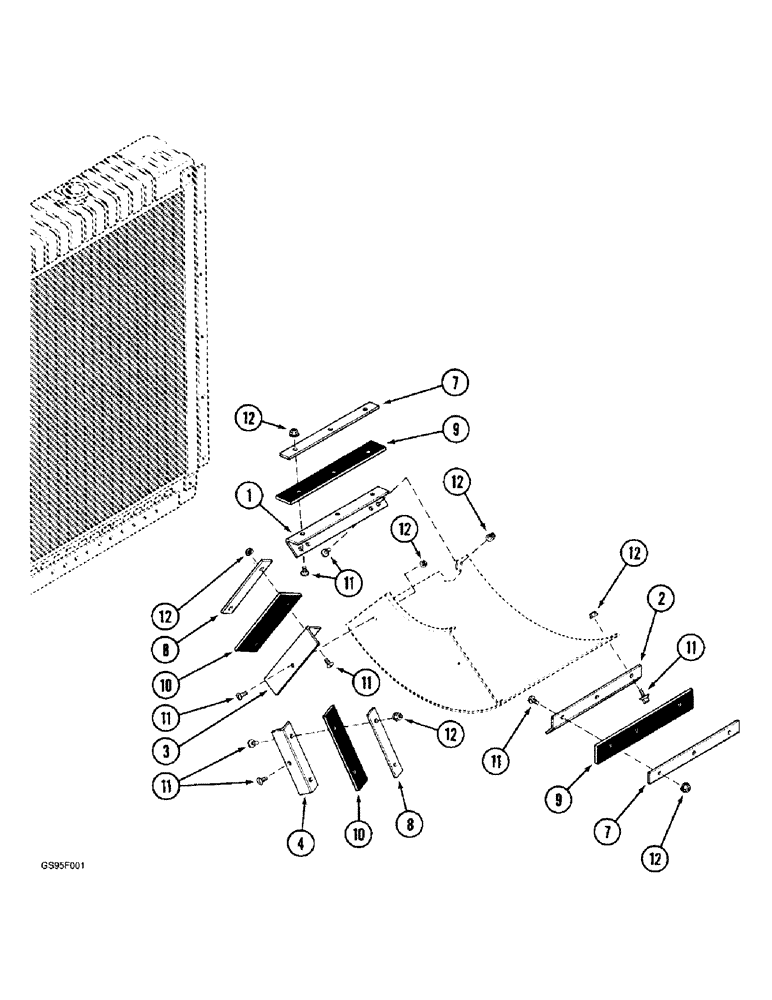

Схема запчастей Case IH 1670 - (2-04) - RADIATOR BAFFLE SUPPORTS (01) - ENGINE
8
10
12
11
11
7
3
12
12
9
12
11
12
1
8
11
7
10
2
12
11
4
12
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1977159C1

SUPPORT

- baffle, left-hand

1шт.

2

1977160C1

SUPPORT

- baffle, right-hand

1шт.

3

1977161C1

SUPPORT

- baffle, left-hand rear

1шт.

4

1977162C1

SUPPORT

- baffle, right-hand rear

1шт.

7

1977163C1

LARGE PLATE

STRIP - seal, baffle side, 11-13/16 inch (300 mm) long

2шт.

8

1977164C1

SEALING STRIP

- seal, baffle rear, 6-1/2 inch (165 mm) long

2шт.

9

1977165C1

SEAL

- side, baffle, 12 inch (304 mm) long

2шт.

10

1977166C1

SEAL

- rear, baffle, 8 inch (203 mm) long

2шт.

11

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

12шт.

12

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

12шт.
