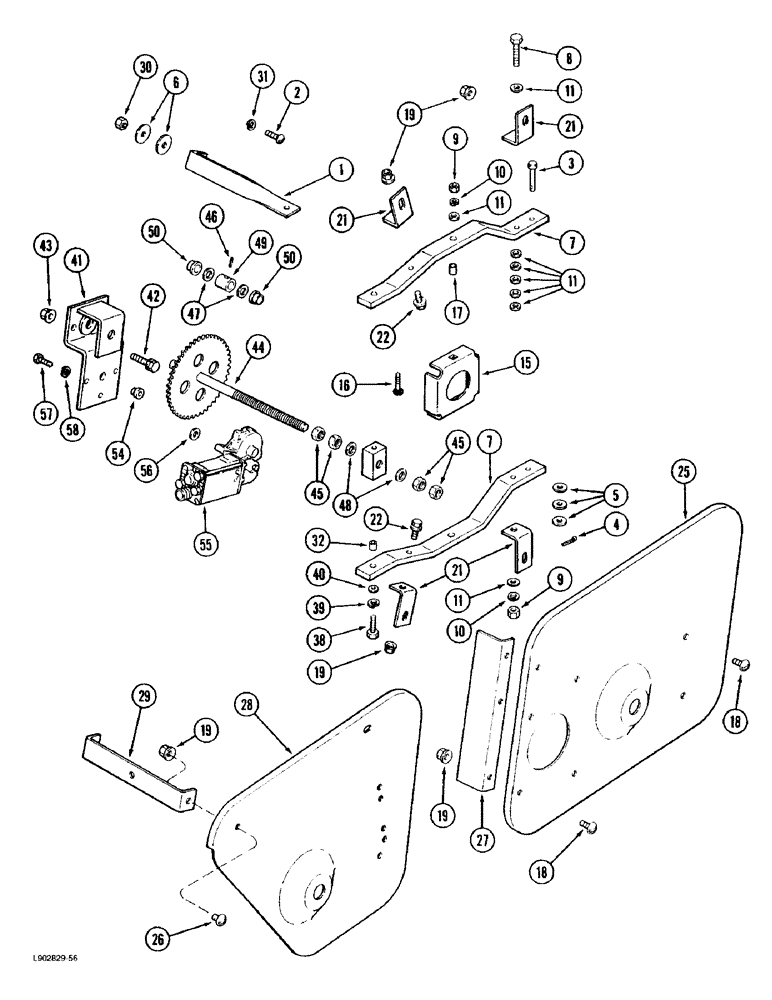

Запчасти Case IH 1670 (9C-12) - CLEANING FAN DRIVE SPEED CONTROL (15) - BEATER & CLEANING FANS

1

186283C1

SUPPORT

- fan drive control

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

3

439-1624

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch, grade 2 (Replaces pin 21964R1)

1шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

6

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

7

194850C2

SUPPORT

- fan control

2шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

194852C2

SUPPORT

- fan driver

1шт.

16

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

2шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

12шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

12шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

21

194756C2

ANGLE

- fan drive pulley shield

4шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

25

194758C2

SUPPORT

- fan jackshaft

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

27

186089C1

SHIELD

- elevator drive idler

1шт.

28

1304662C1

SUPPORT

SHIELD - fan drive

1шт.

29

194760C1

SUPPORT

BRACKET - fan shield, lower

3шт.

30

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

33

181206C1

BLOCK

- fan speed control shaft

1шт.

38

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

181199C2

SUPPORT

- speed control motor (Replaces support 181199C1)

1шт.

42

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

43

231-5146

FLANGE NUT,3/8"-16

2шт.

44

181202C1

SHAFT ASSY.

SHAFT - adjusting gear

1шт.

45

425-1010

NUT,5/8"-11, G5

4шт.

46

138-2067

PIN,3/16" x 1", Coiled

(Replaces pin 364436R1) 3/16" x 1", Coiled

1шт.

47

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

2шт.

48

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

- thrust, fan control

2шт.

49

181205C1

SPACER

- adjusting gear shaft

1шт.

50

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- adjusting gear shaft

2шт.

54

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

55

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed

1шт.

56

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

3шт.

57

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

58

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
