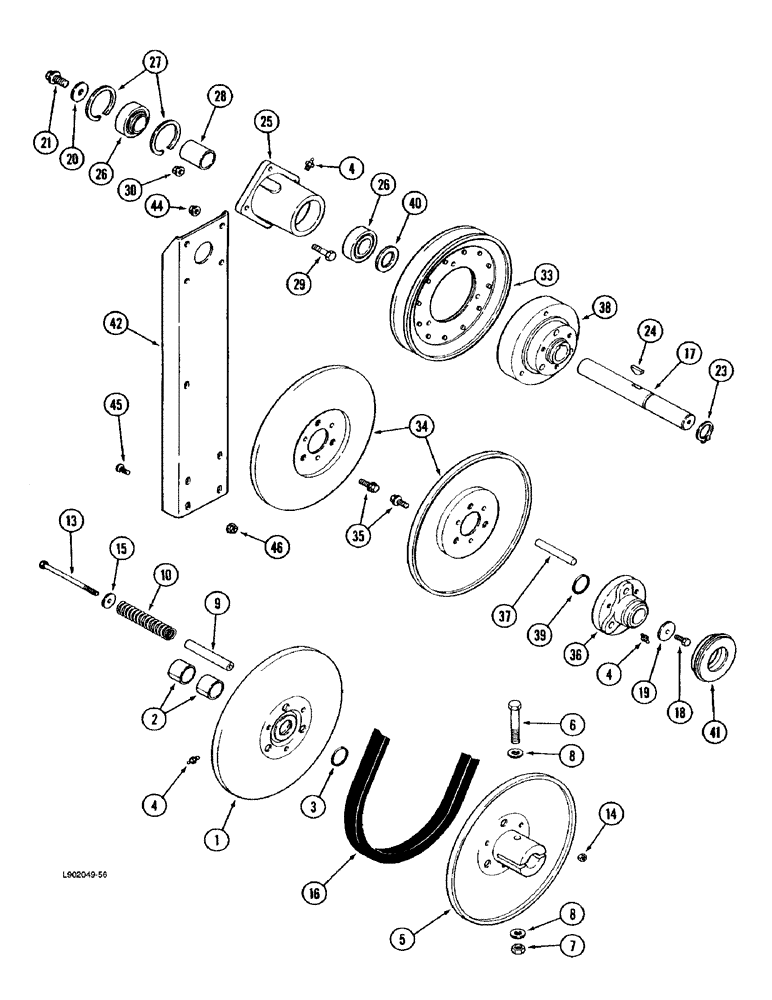

Запчасти Case IH 1670 (9C-10) - CLEANING FAN DRIVE (15) - BEATER & CLEANING FANS

1

1324948C1

PULLEY ASSY.

PULLEY ASSEMBLY - fan drive, adjustable, Includes: Ref. 2 and 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

- pulley

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

5

1324949C1

PULLEY ASSY.

PULLEY ASSEMBLY - fan driven fixed, 11-1/4 inch O.D., Includes: Ref. 6

1шт.

6

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

8

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

9

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

- fan drive spring

3шт.

10

1302540C1

SPRING

- fan drive outer pulley

3шт.

13

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

3шт.

14

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

15

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

16

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Drive, Over center 31.80 mm W x 1881.58 mm L

1шт.

17

194853C3

SHAFT

- elevator and fan drive

1шт.

18

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

19

495-81122

WASHER,.344" x 1 1/2" x .120"

- flat, 11/32 x 1-1/2 x 7/64 inch

1шт.

20

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

1шт.

21

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

1шт.

23

100-16125

SNAP RING,#125, Ext

Ring, Snap, , Inner drive bearing #125, Ext

1шт.

24

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

25

192418C1

HUB

- elevator and fan drive

1шт.

26

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - self-aligning adapter

2шт.

27

360936R1

RING

- snap, fan drive shaft

2шт.

28

152926C1

SPACER

- 1-15/16 x 1-5/8 x 1-7/8 inch

1шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

30

231-5146

FLANGE NUT,3/8"-16

4шт.

33

183325C1

PULLEY

- cleaning unit fan, driven, 13 inch O.D.

1шт.

34

183288C1

PULLEY

- cleaning unit fan, driven, 11-1/4 inch O.D.

2шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

36

185286C91

HUB

ASSEMBLY - fan driver adjusting pulley, Includes: Ref. 37

1шт.

37

37-1856

DOWEL,1/2" x 3 1/2"

Hardened 1/2" x 3 1/2"

3шт.

38

183333C1

HUB

- fixed pulley

1шт.

39

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

40

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - flat, special, 1-9/32 x 1-7/8 x 3/16 inch

1шт.

41

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

BEARING - fan jackshaft (Replaces bearing 168215C91)

1шт.

42

188128C1

CHANNEL

- fan hub

2шт.

45

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

3шт.

45

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

3шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.
