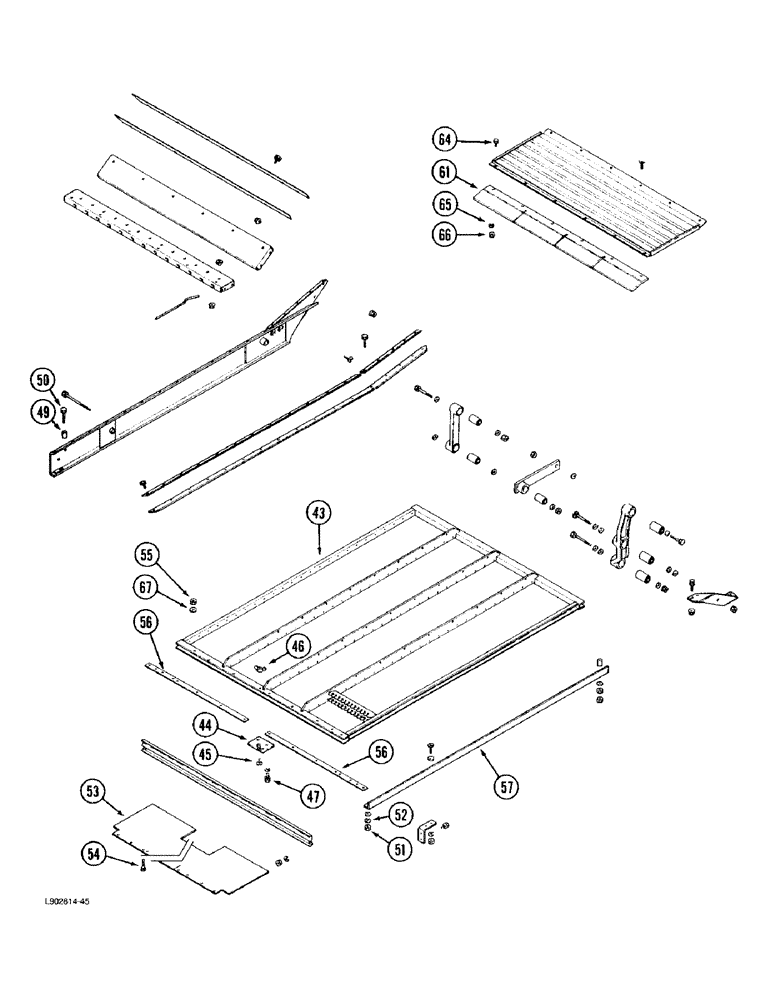

Запчасти Case IH 1670 (9B-42) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

43

1330684C2

SIEVE

- 1-1/8 adjustable chaffer, standard for specialty crop and grain, includes Ref. 44 (Replaces sieve 1330684C1), continued from 9B-40

1шт.

43

1319092C4

GRAIN SIEVE

SIEVE - Peterson chaffer, parts accessory (Replaces sieve 1319092C3)

1шт.

44

186675C1

ADJUSTING PLATE

ASSEMBLY - shoe lever

1шт.

45

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

1шт.

46

129-409

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

48

231-5146

FLANGE NUT,3/8"-16

2шт.

47

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

49

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

2шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

52

492-11038

LOCK WASHER,3/8"

2шт.

53

195186C2

SEAL

SEAL - chaffer

1шт.

54

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

55

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

56

1338343C1

RETAINER

- rear chaffer seal, lower left-hand

1шт.

56

1338344C1

RETAINER

- rear chaffer seal, lower right-hand

1шт.

57

186370C1

ANGLE

- chaffer support, right-hand

1шт.

61

1319258C1

COVER

- chaffer finger

1шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

65

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

66

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

67

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

8шт.

1319278C91

PACKAGE

KIT - alfalfa, parts accessory, Includes: Ref. 61, and parts on Figure 9B-38

1шт.
