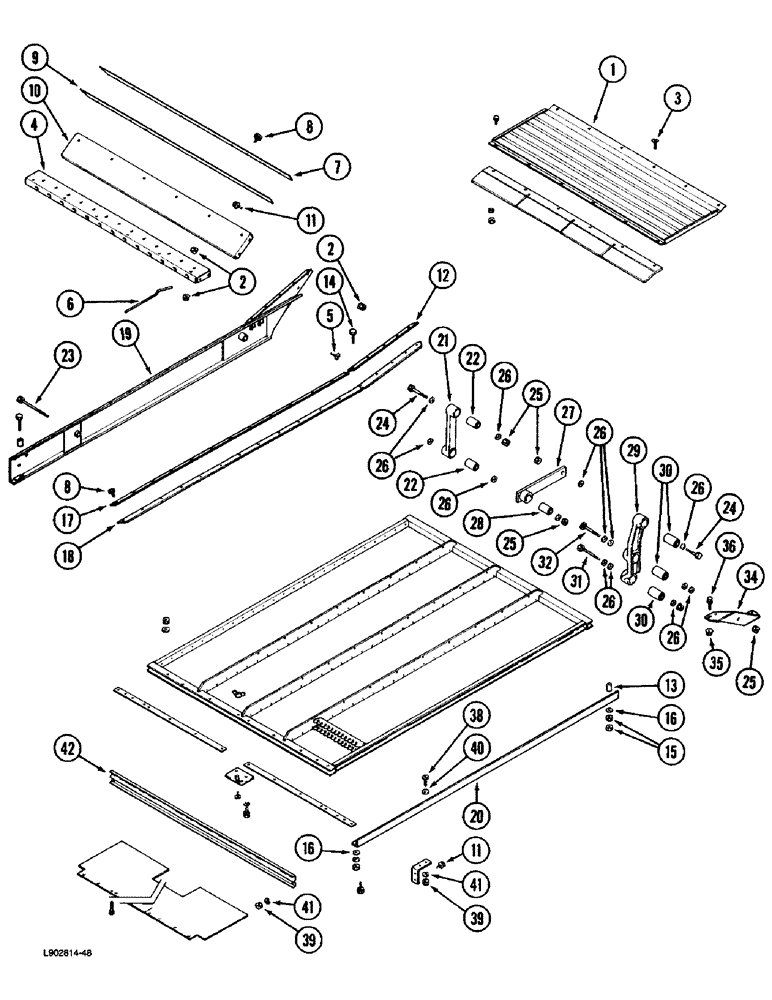

Запчасти Case IH 1670 (9B-40) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192056C1

GRAIN PAN

PAN - grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

20шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

12шт.

4

192060C1

SUPPORT

- chaffer pan

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

5

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

13шт.

7

192048C1

BAR

- front chaffer frame seal

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

48шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP - chaffer frame

1шт.

10

192044C1

SUPPORT

- chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

12

192052C3

BAR

- chaffer frame seal, short (Replaces bar 192052C2)

2шт.

13

186646C1

SPACER,5/8" Tube x 15/16"

- chaffer sieve support

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

6шт.

17

192053C2

BAR

- chaffer frame seal (Replaces bar 192053C1)

2шт.

18

192051C3

SEALING STRIP

- chaffer frame

2шт.

19

1979202C1

RAIL

- chaffer, left-hand

1шт.

19

1979203C1

RAIL

- chaffer, right-hand

1шт.

20

186369C1

ANGLE

- chaffer support

1шт.

21

1957455C1

ARM

ASSEMBLY - rear hanger, Includes: Ref. 22

2шт.

22

1330324C1

BUSHING

- front hanger

2шт.

23

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

24

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

2шт.

25

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

10шт.

27

1330357C1

ARM

ASSEMBLY - shoe, rear, Includes: Ref. 28

2шт.

28

1330324C1

BUSHING

- front hanger

1шт.

29

1957460C2

LEVER

ASSEMBLY - shoe, Includes: Ref. 30

2шт.

30

1330323C2

BUSHING

- 5/8 x 1-1/2 x 2-57/64 inch

3шт.

31

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 NC x 5 inch

2шт.

34

1968827C1

SUPPORT

- shoe lever, left-hand

1шт.

34

1968828C1

SUPPORT

- shoe lever, right-hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

8шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

8шт.

37

186674C1

ANGLE

- rear deflector

2шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

192070C2

CHANNEL

- rear

1шт.
