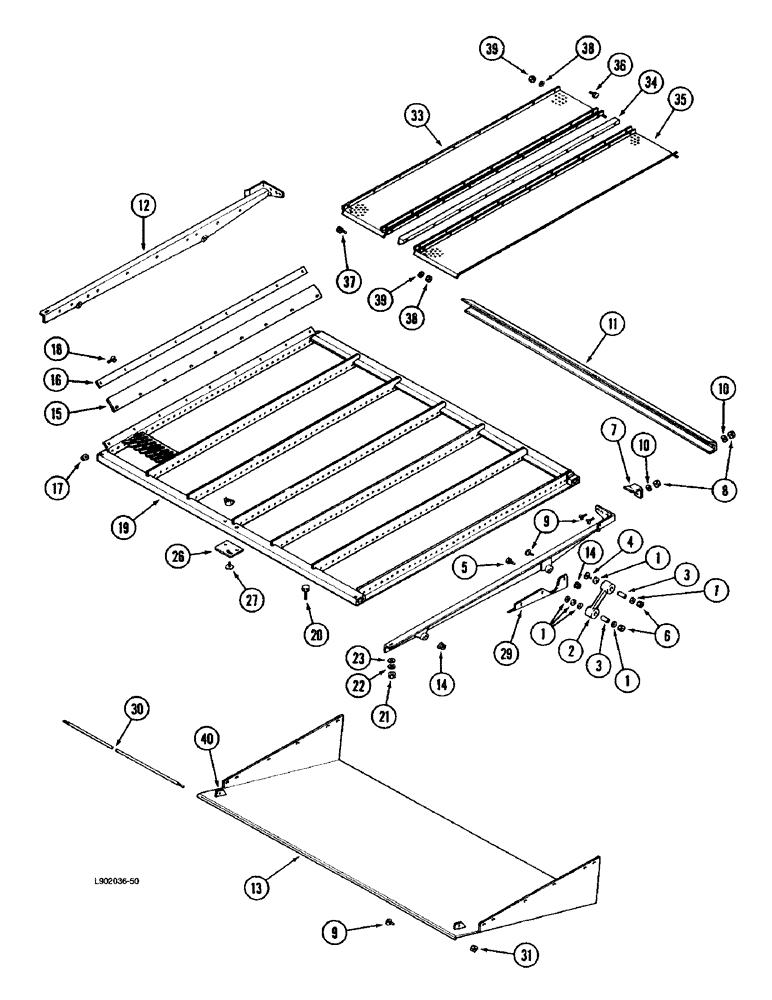

Запчасти Case IH 1670 (9B-38) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

12шт.

2

1957450C1

ARM

HANGER ASSEMBLY - shoe, front, Includes: Ref. 3

2шт.

3

1330324C1

BUSHING

- front hanger

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT - carriage, 5/8 NC x 4 inch

2шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C3

CLIP

- shoe

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

26шт.

9

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

26шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

1319238C1

ANGLE

BRACKET - shoe sieve

1шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

12

1302070C3

SUPPORT

- shoe side, left-hand

1шт.

13

1319211C1

BOTTOM

PAN - bottom

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

15

192192C1

SEALING STRIP

- shoe sieve

2шт.

16

192193C1

BAR

- shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

18

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

18шт.

19

1346914C2

SIEVE

- shoe, with piano wire, if used (Replaces sieve 1346914C1)

1шт.

19

194348C1

GRAIN SIEVE

SIEVE - shoe, 1/10 inch round holes, if used

1шт.

19

194349C1

GRAIN SIEVE

SIEVE - shoe, 7/32 inch round holes, if used

1шт.

19

194350C1

GRAIN SIEVE

SIEVE - shoe, 3/8 inch round holes, if used

1шт.

19

194351C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch round holes, if used

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

22

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

1302071C3

SUPPORT

- shoe side, right-hand

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

1шт.

28

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

29

1302335C2

SUPPORT

- forward shoe, left-hand

1шт.

29

1302336C2

SUPPORT

- forward shoe, right-hand

1шт.

30

1319217C1

ROD

- return pan bottom

1шт.

31

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

32

1319285C1

SCREEN

- perforated side section

2шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

For use with 192091C2 sieve.

1шт.

33

1319286C1

SCREEN

- perforated mid section

2шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

For use with 192091C2 sieve.

1шт.

34

1319284C1

BAR

- wood spacer

1шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

For use with 192091C2 sieve.

1шт.

35

1319300C1

BAR

- screen fastener backing

8шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

For use with 192091C2 sieve.

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

18шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

27шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

27шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.

40

1319219C1

PLATE

BAR - shoe return pan filler

2шт.

1319278C91

PACKAGE

KIT - alfalfa, parts accessory, Includes: Ref. 11 and 32-39 and parts on Figure 9B-42

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.

Part of Alfalfa Kit P/N 1319278C91

1шт.
