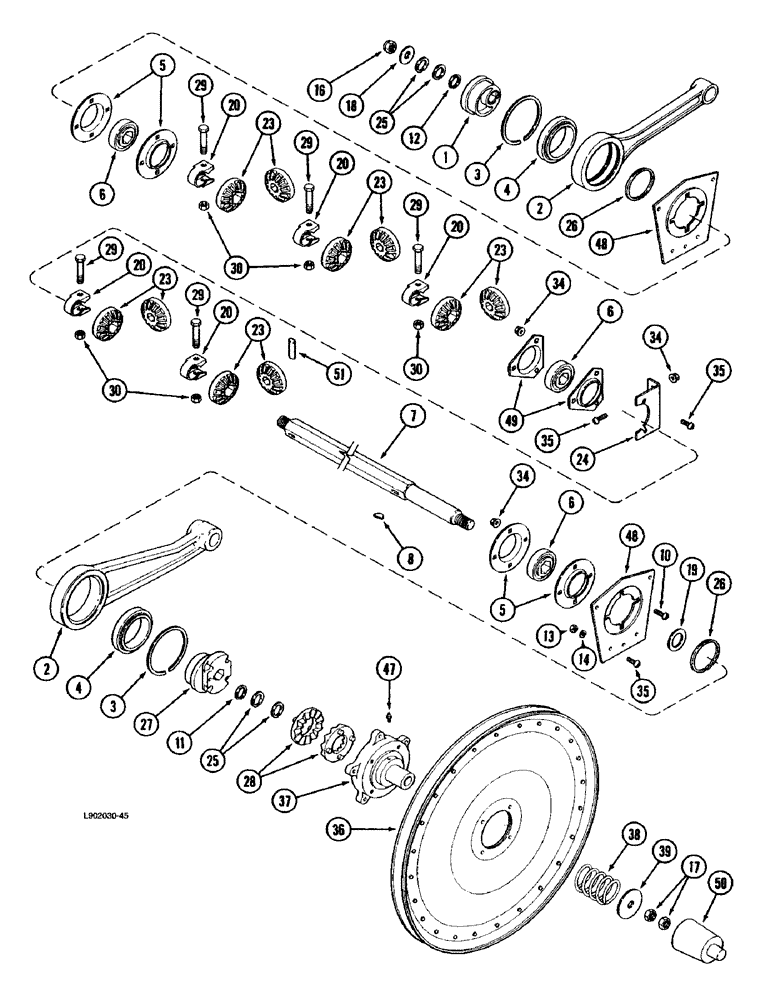

Запчасти Case IH 1670 (9B-36) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

-shaker shaft, pitman drrive, left-hand

1шт.

1322573C1. TSG GAVE US THIS NOTE: "KEYWAY IS 5/16 IN THIS CAM. THE WIDTH AND DEPTH HAVE BEEN INCREASED. THE 1/4 INCH KEY PART NO DID NOT CHANGE. THE KEY IS USED FOR TIMIN GONLY AND THE STD KEYWAY TOLERANCES ARE NOT REQUIRED."

1шт.

2

1957458C2

ARM ASSY.

-shaker shaft, parts list figure 9B-34

2шт.

3

1322624C1

SNAP RING

-internal, 5-1/8 inch

2шт.

4

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

-shaker shaft pitman (Replaces bearing 1322676C1)

2шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

-bearing

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

7

1970192C1

SHAFT

-shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

8шт.

11

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

-flat, 1-1/16 x 1-1/4 x 1/8 inch

1шт.

12

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

-flat, special, 29/32 x 1-1/4 x 1/8 inch

1шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

16

232-41112

NUT,3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

-shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

1шт.

20

225265R1

CLAMP

-auger bed gear

5шт.

23

1300639C1

GEAR-SET

-auger drive, set of two, 14 teeth

5шт.

24

186589C1

SUPPORT

-center bearing

1шт.

25

1322623C1

RETAINER

-internal, 1-13/64 inch

4шт.

26

1979190C1

RETAINER

-external, 2-21/32 inch

2шт.

27

1322574C1

CAM

-shaker shaft, pitman drive, right hand

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

-clutch

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

5шт.

34

231-5146

FLANGE NUT,3/8"-16

5шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

13шт.

36

1979876C1

PULLEY

-shaker shaft driven, right-hand drive, see figure 9A-4

1шт.

37

1303136C1

HUB

-drive slip clutch

1шт.

38

19302K

SPRING

-shaker shaft drive slip clutch

2шт.

39

498-81215

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

48

1302221C1

PLATE

-shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

-bearing

2шт.

50

182544C1

SHIELD

-shaker shaft spring

1шт.

51

38-32032

PIN,7.92mm OD x 50.8mm L

4шт.
