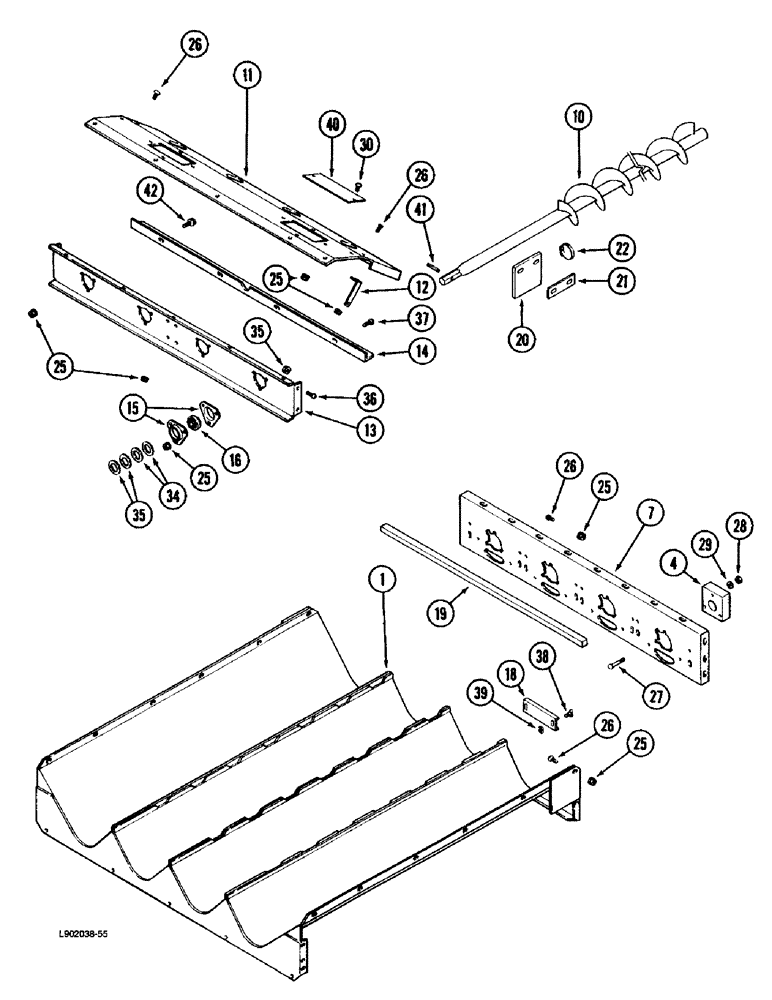

Запчасти Case IH 1670 (9B-32) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

185038C5

BOTTOM

TROUGH - auger (Replaces trough 185038C3)

1шт.

4

193414C2

BOARD

- front auger bearing

4шт.

5

1319548C1

BAR

COVER - grain sensor

2шт.

7

1345013C3

SUPPORT

- center (Replaces support 1345013C1)

1шт.

10

1308541C1

AUGER

- right-hand rotation

4шт.

11

1321373C1

PLATE

PANEL - filler, rotor to auger drive

1шт.

12

193554C1

SUPPORT

- pan

2шт.

13

1309225C1

SUPPORT

- auger drive gear

1шт.

14

188359C1

ANGLE

- auger support stiffener

1шт.

15

571424R1

FLANGE

- bearing

8шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - auger drive

4шт.

18

1319163C91

COVER

ASSEMBLY - auger trough clean out, Includes: Ref. 19

1шт.

19

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

- clean out trough cover

1шт.

1300666C91

KIT

- accessory, auger bed grain spreader, Includes: Ref. 20 - 22

1шт.

20

1302112C1

STRIP

PLATE - auger bed grain spreader

1шт.

21

1302113C1

BAR

- grain spreader plate

1шт.

22

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

75шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

58шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

58шт.

27

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

12шт.

28

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

12шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

13шт.

33

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

8шт.

34

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

8шт.

35

231-5146

FLANGE NUT,3/8"-16

7шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT - wing, clean out cover

4шт.

39

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC

4шт.

40

1319548C1

BAR

COVER - grain sensor

2шт.

41

38-32032

PIN,7.92mm OD x 50.8mm L

4шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.
