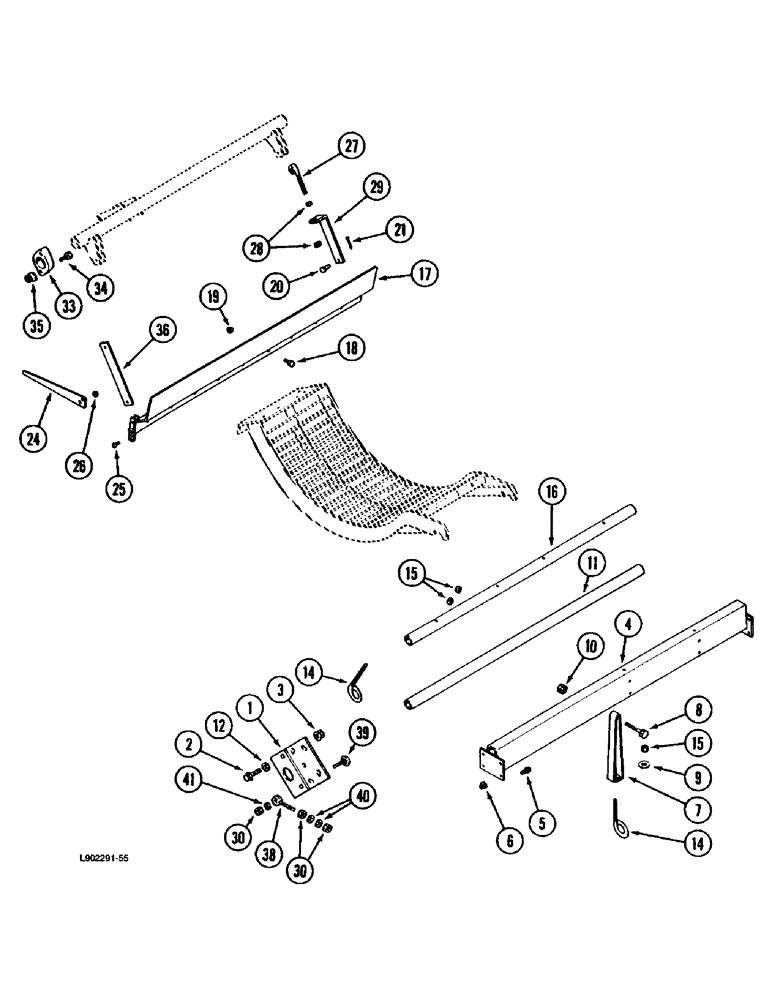

Запчасти Case IH 1670 (9B-28) - CONCAVE ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

1

1338040C1

SUPPORT

- concave anchor, rear

1шт.

1

1338039C2

SUPPORT

- concave anchor, front (Replaces support 1338039C1)

1шт.

2

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

BOLT - self-locking, hex flange, special, 5/8 NC x 1-1/2 inch

10шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

3

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

10шт.

4

1317229C1

SUPPORT

- Concave, RH

1шт.

5

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, special, 1/2 NC x 1-1/4 inch

6шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

7

1317233C1

SUPPORT

- concave strap

2шт.

8

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

195255C1

PIPE

- concave control

1шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

10шт.

14

1317280C1

BOLT,1/2" - 13 x 152mm, Full Thd

EYEBOLT - concave

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

16

193790C3

PIPE

- concave control

1шт.

17

1318433C1

SUPPORT

- concave anchor

1шт.

18

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

12шт.

19

231-5146

FLANGE NUT,3/8"-16

12шт.

20

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

PIN - headed, 1/2 x 1-7/16 inch, grade 2 (Replaces pin 21939R1)

2шт.

21

432-1216

COTTER PIN,3/16" x 1"

2шт.

24

1317660C1

SUPPORT

- concave indicator

1шт.

25

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

EYEBOLT - concave adjusting

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

29

1317349C1

SUPPORT

BRACKET - concave adjusting eyebolt

1шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

33

192890C2

HUB

- concave control shaft

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

36

1317388C1

BAR

- concave support

1шт.

38

177662C2

EYEBOLT

- anchor support

2шт.

39

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

BOLT - carriage, 1/2 NC x 1-1/2 inch, grade 2

2шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
