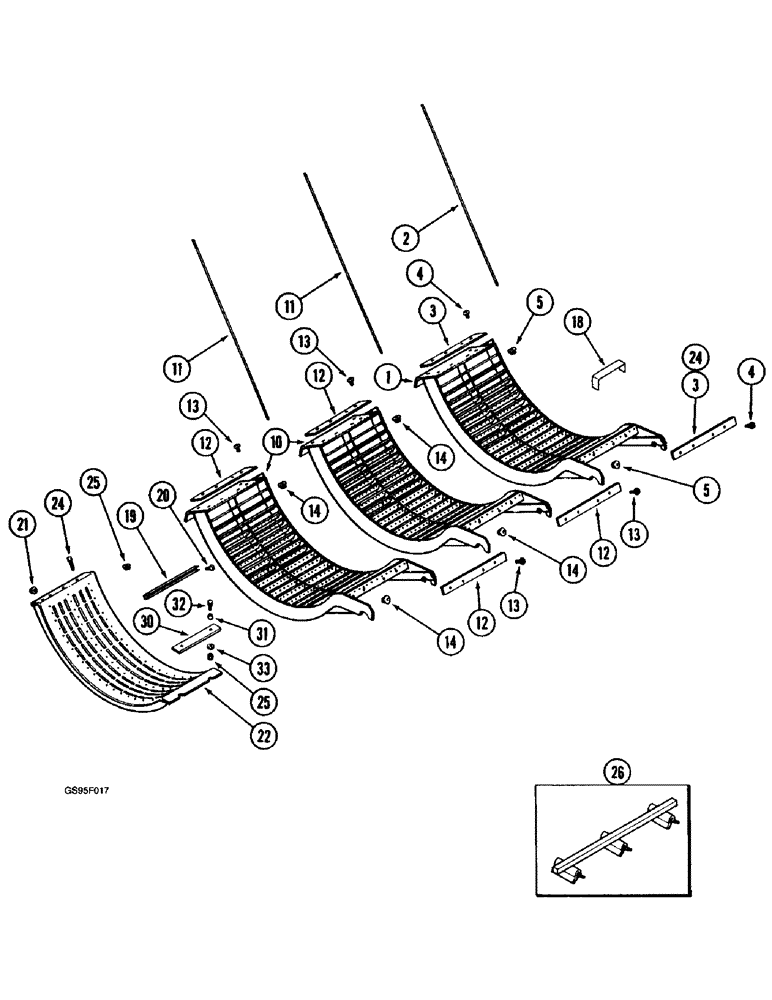

Запчасти Case IH 1670 (9B-26) - CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

1

1309208C3

CONCAVE

ASSEMBLY - front, small wire (Replaces concave assembly 1979795C1), Includes: Ref. 2 - 5

1шт.

2

1302602C2

ROD

- concave (Replaces rod 1338363C1)

30шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

1

1302606C5

CONCAVE

ASSEMBLY - front, large wire (Replaces concave assembly 1338372C1), Includes: Ref. 2 - 5

1шт.

2

1302601C2

STEM

ROD - concave (Replaces rod 1338374C1)

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

10

1309210C3

CONCAVE

ASSEMBLY - No. 2 and 3 small wire (Replaces concave assembly 1979796C1)

2шт.

11

1302602C2

ROD

- concave (Replaces rod 1338363C1)

30шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

16шт.

14

231-5146

FLANGE NUT,3/8"-16

16шт.

10

1302607C4

CONCAVE

ASSEMBLY - No. 2 and 3 large wire (Replaces concave assembly 1338373C1), Includes: Ref. 11 - 14

1шт.

11

1302601C2

STEM

ROD - concave (Replaces rod 1338374C1)

14шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

16шт.

14

231-5146

FLANGE NUT,3/8"-16

16шт.

1300673C91

PACKAGE

KIT - concave filler, small wire, set of 6, Includes: Ref. 18

1шт.

18

1309425C1

CHANNEL

- concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT - concave filler, large wire, set of 6, Includes: Ref. 18

1шт.

18

1309424C1

CHANNEL

- concave filler, large wire

6шт.

19

191536C1

CHANNEL

- grate adjusting

21шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

191538C3

GRATE ASSY.

GRATE - slotted, grain

3шт.

22

1302562C1

CONCAVE

GRATE - keystock, grain

1шт.

22

1319750C1

GRATE

- smooth, sunflower seed

1шт.

23

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

24

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

- hex serrated flange, 3/8 NC x 1-1/4 inch, grade 8

1шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

1324046C3

BAR

- concave (Replaces bar 1324046C2)

1шт.

30

186784C2

BAR

- grate hanger

3шт.

31

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

32

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

33

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.
