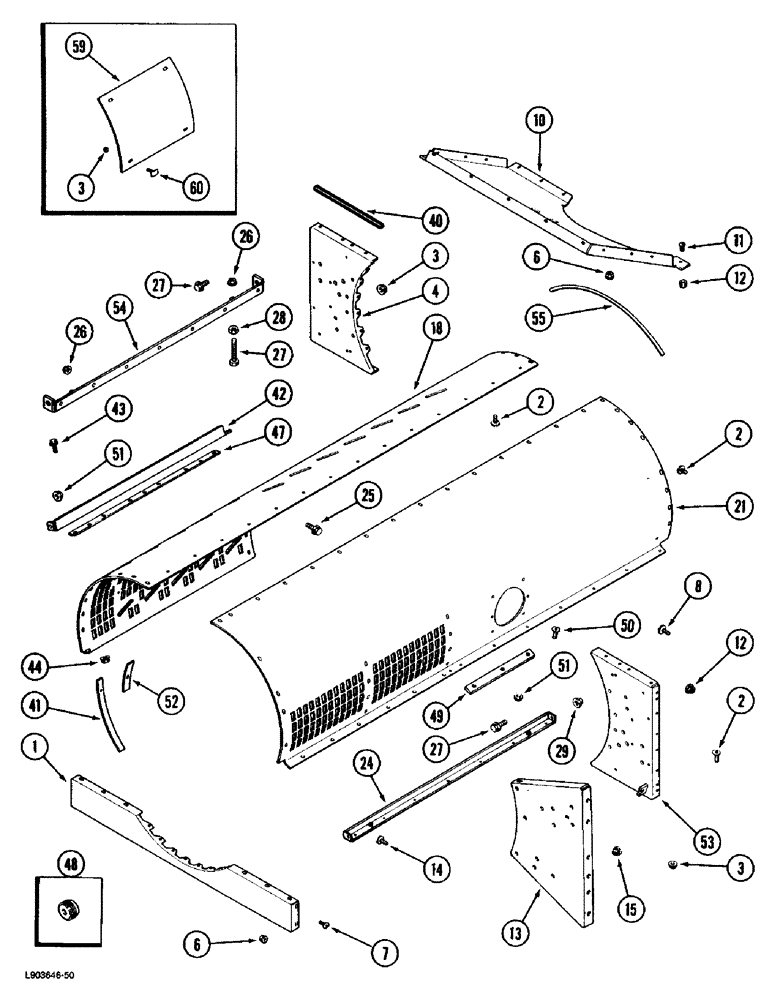

Запчасти Case IH 1670 (9B-20) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192297C2

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1338055C1

SUPPORT

- rotor cage (Order 1994848C1 support for front left-hand)

2шт.

6

231-5146

FLANGE NUT,3/8"-16

12шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

6шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

10

193152C1

SUPPORT

- front, grain tank (Replaces support 1345306C1)

1шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

9шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

9шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

13

1338056C1

SUPPORT

- rotor cage, left-hand intermediate

2шт.

13

1338044C1

SUPPORT

- rotor cage, right-hand intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

18шт.

15

231-5146

FLANGE NUT,3/8"-16

18шт.

18

1318829C1

CAGE

SUPPORT - rotor, left-hand

1шт.

21

1318419C2

CAGE

SUPPORT - rotor, right-hand

1шт.

24

188333C1

SUPPORT

- cage, right-hand

1шт.

25

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

14шт.

26

231-5146

FLANGE NUT,3/8"-16

14шт.

27

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch, if used

2шт.

27

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch, if used

2шт.

28

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

318103R2

SEAL

- grain tank support, cut from 73220C1 strip, see below

2шт.

41

186797C2

SUPPORT

PLATE - cage filler, rear

1шт.

42

185386C1

SUPPORT

- cage, left-hand

1шт.

43

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

1шт.

43

186917C1

SCREW

BOLT - hex, special, 3/8 NC x 3/4 inch

19шт.

44

231-5146

FLANGE NUT,3/8"-16

1шт.

47

183323C1

STRAP

BAR - cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

- grain tank to cage support, 1/4 inch 1D, if used

1шт.

48

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- grain tank to cage support, 5/8 inch ID, if used

1шт.

48

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- lamp harness, right-hand, if used

1шт.

49

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

50

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

1шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

52

1318899C1

SUPPORT

- rotor cage, left-hand front

1шт.

53

1338045C1

SUPPORT

- rotor cage, right-hand front

1шт.

54

1309191C1

SUPPORT

- cage, left-hand

1шт.

55

1309111C1

SEAL,19mm W x 725mm L

- rubber, 28-9/16 inch (725 mm) long

1шт.

59

1979540C1

COVER

- rotor separator, upper right-hand

2шт.

60

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head, special

8шт.

73220C1

FILLING STRIP

STRIP - bulk length, 4 foot long

1шт.
