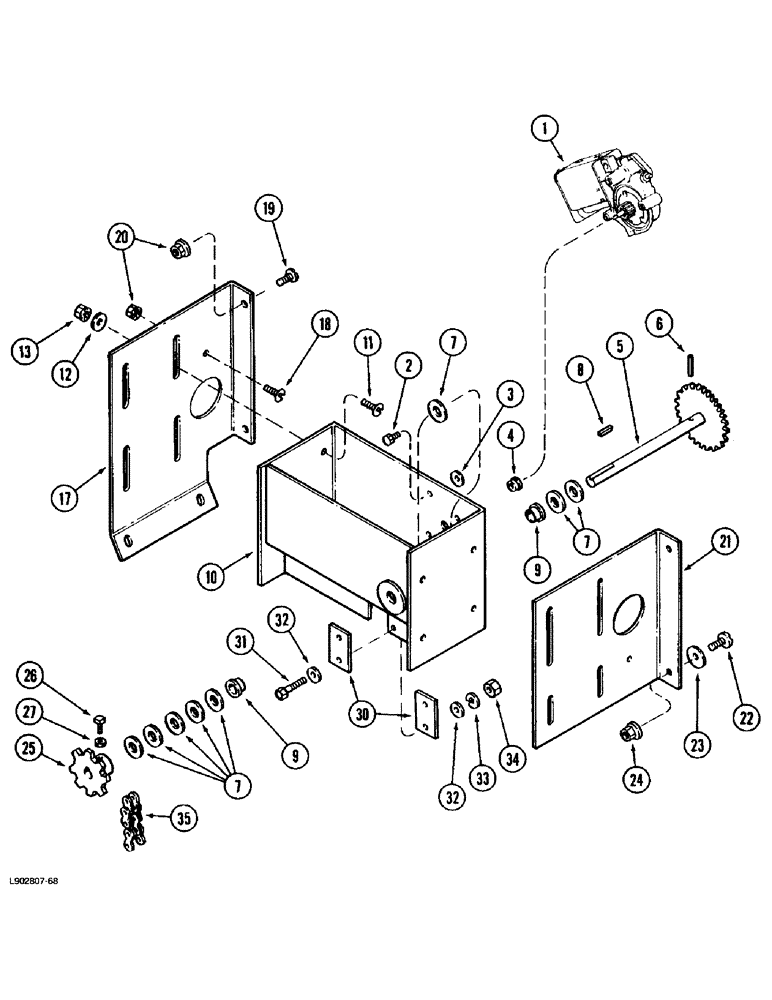

Запчасти Case IH 1670 (9B-06) - ROTOR DRIVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

3

495-81137

WASHER,13/32" x 1" x .224"

- flat, 13/32 x 1 x 15/64 inch (Replaces washer 21843R1)

3шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

5

194338C1

GEAR

SHAFT - rotor gear

1шт.

6

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- gear shaft

2шт.

10

183227C1

SUPPORT ASSY.

SUPPORT - motor

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

8шт.

12

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 21403R1)

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

17

188203C3

SUPPORT

- rotor adjusting (Replaces support 188203C2)

1шт.

18

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

194336C2

SUPPORT

- rotor adjusting, RH

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Replaces washer 614452R1)

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

- control, 8 teeth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head cup point, 1/4 NC x 3/4 inch (Replaces screw 127796)

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

30

1302173C1

PAD

- motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - variable drive

1шт.

For service order 31 links of No. 2040 chain, one 457113R91 connecting link and two 457114R91 offset links.

1шт.
