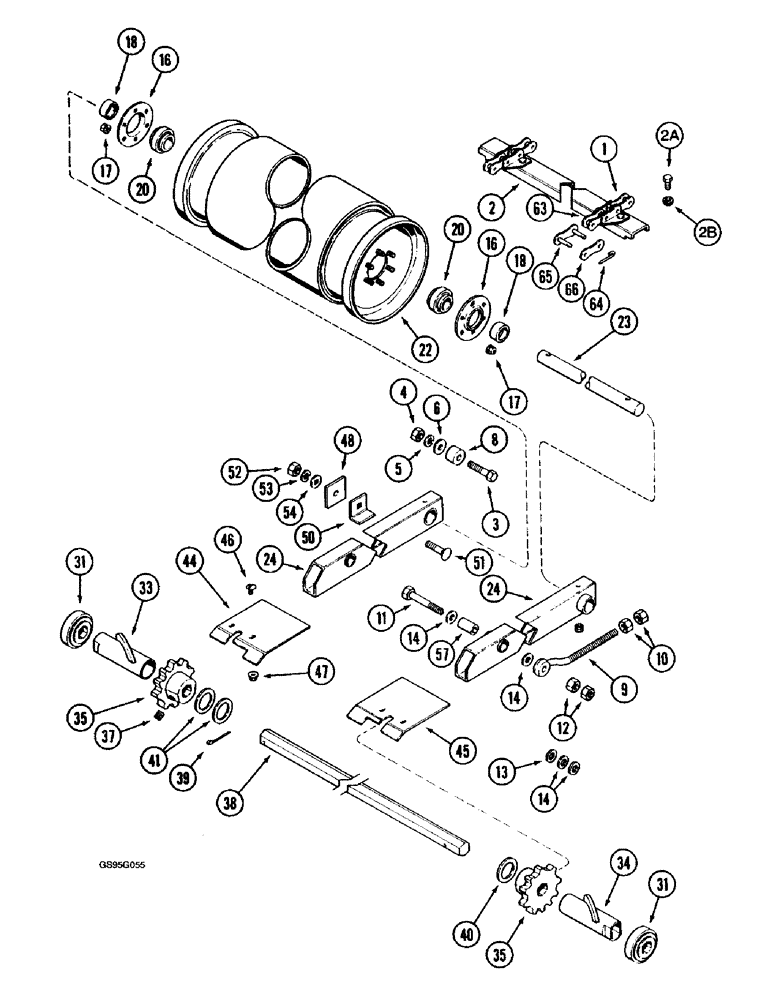

Запчасти Case IH 1670 (9A-38) - FEEDER CONVEYOR (13) - FEEDER

1

117869A1

CHAIN,Feeder

CHAIN ASSEMBLY - conveyor, corn and grain (10 smooth slats, A557 chain) (Replaces chain assembly 1324266C2)

1шт.

1313419C2

KIT

- smooth slat, used with corn and grain, Includes: Ref. 2, 2A and 2B

1шт.

2

1313190C1

SLAT

CHANNEL - smooth slat

1шт.

2a

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

2b

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

4шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- hex, special

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

8

197211C1

SPACER

- stop

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening, special

2шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

187218C2

BOLT

BOLT - hex, special, 5/8 NC x 4-1/2 inch (Replaces bolt 187218C1)

2шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

16

1330461C1

FLANGED BEARING

- bearing

2шт.

17

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

6шт.

18

557995R11

COLLAR

- bearing, with set screw

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- ball

2шт.

22

1957439C3

ROLLER

- conveyor (Replaces drum 1957439C1)

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum

1шт.

24

1304193C1

SUPPORT

ARM - drum shield, left-hand

1шт.

24

1304194C1

SUPPORT

ARM - drum shield, right-hand

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING - ball

2шт.

33

178780C1

SPACER

- sprocket, left-hand

1шт.

34

178781C1

SPACER

- sprocket, right-hand

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain

2шт.

37

197643C1

SET SCREW

- set

4шт.

38

1320160C3

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

1300464C91

PACKAGE

KIT - stripper, feeder pivot, Includes: Ref. 44 - 47

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left-hand

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right-hand

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

47

231-5146

FLANGE NUT,3/8"-16

4шт.

48

1304746C1

BAR

- upper stop adjusting

2шт.

50

187364C2

ANGLE

- stop

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- 7/8 x 1-13/16 inch

2шт.

63

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ATTACHING ASSEMBLY - conveyor

1шт.

64

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, includes pin

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, includes pin

1шт.
