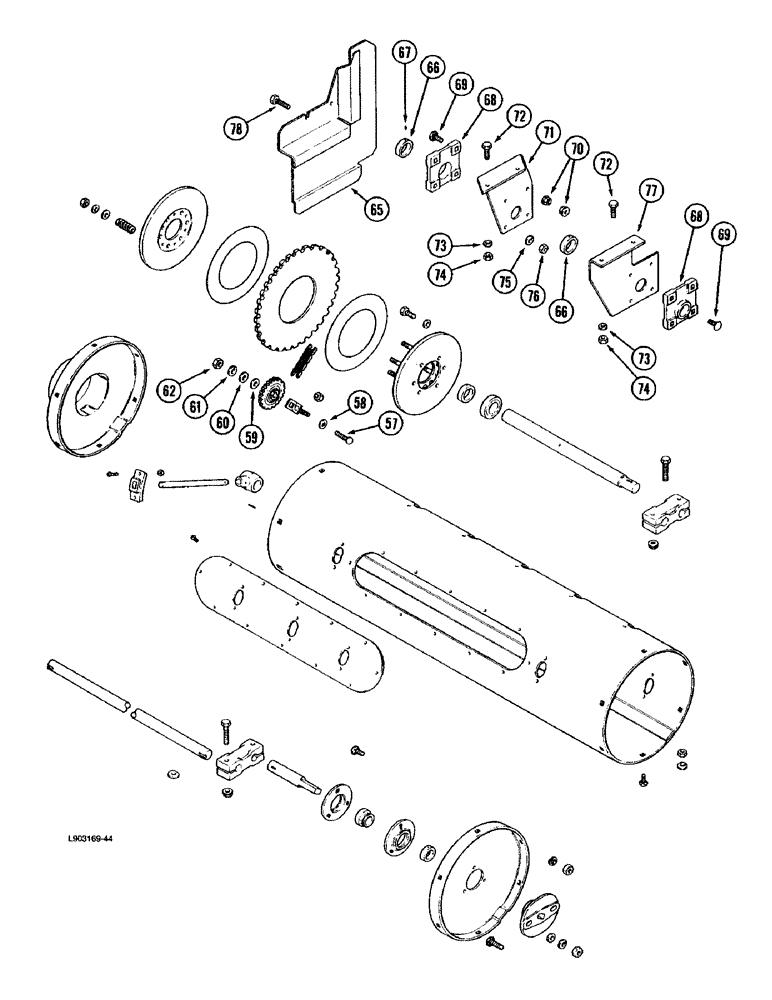

Запчасти Case IH 1670 (9A-34) - FEEDER BEATER TUBE, (CONT) (13) - FEEDER

57

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage, 5/8 NC x 2-1/2 inch, continued from 9A-32

1шт.

58

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

- square hole, 21/32 x 1-1/4 x 3/32 inch

1шт.

59

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

60

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

425-1010

NUT,5/8"-11, G5

1шт.

65

1314049C91

SHIELD

ASSEMBLY - feeder beater, includes decal, Includes danger decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped, see figure 9H-36

1шт.

66

597950R1

COLLAR

- locking

2шт.

67

483-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, headless hex socket, 5/16 NC x 3/8 inch

2шт.

68

158907C1

HUB

- support

2шт.

69

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

4шт.

70

231-5146

FLANGE NUT,3/8"-16

4шт.

71

1314046C1

SUPPORT

- feed beater

1шт.

72

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

73

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

74

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

75

492-11038

LOCK WASHER,3/8"

4шт.

76

425-106

NUT,3/8"-16, Cl 5

4шт.

77

1304392C1

SUPPORT

- shaft

1шт.

78

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch, grade 2

4шт.
