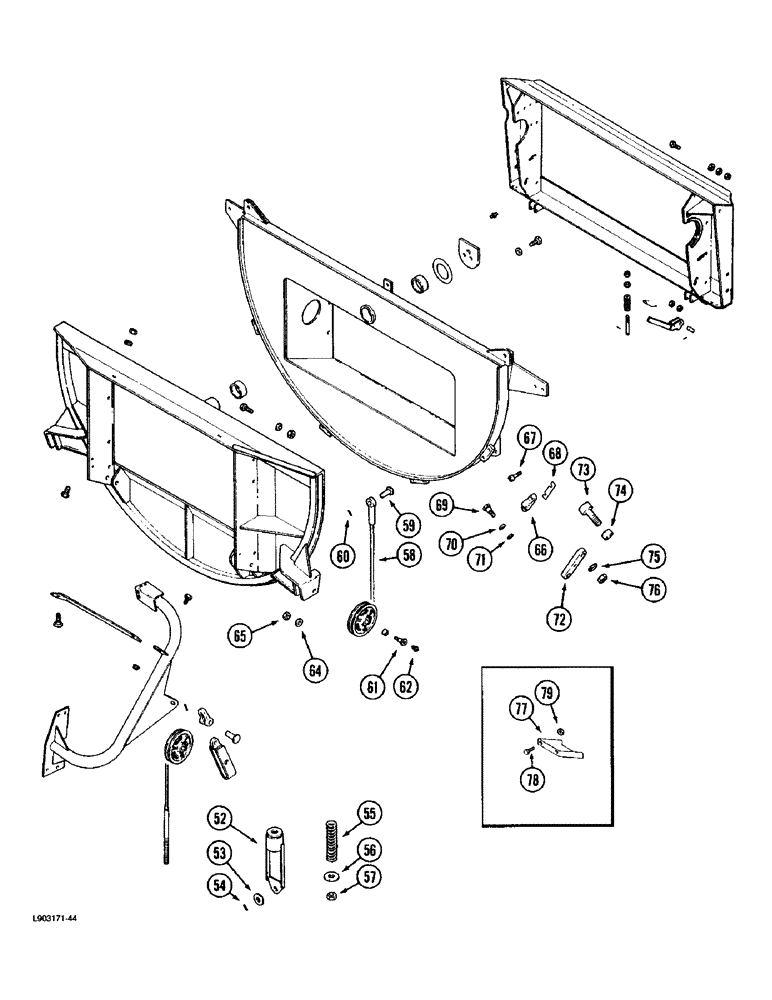

Запчасти Case IH 1670 (9A-30) - FEED BEATER, (CONT) (13) - FEEDER

52

1304191C1

RETAINER

- spring leveling, continued from 9A-28

2шт.

53

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

54

38-31632

PIN,1/4" x 2", Coiled

1шт.

55

338133R2

SPRING

- leveling

2шт.

56

1304588C1

WASHER

WASHER - spring leveling

2шт.

57

425-1010

NUT,5/8"-11, G5

4шт.

58

1994807C1

CABLE

- leveling (Replaces cable 1304022C1)

2шт.

59

439-5828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 3/8 x 1-3/4 inch (Replaces pin 21591R1)

4шт.

60

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

61

574317R1

STUD,Hex, 5/8" - 11 x 2 3/4"

BOLT - cable pulley retaining

4шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

64

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

65

425-1010

NUT,5/8"-11, G5

4шт.

66

1304475C1

SUPPORT

- roller arm

4шт.

67

380-21028

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4", Full Thd

BOLT - 12 point flange, 5/8 NC x 1-3/4 inch (Replaces bolt 26145R1)

4шт.

68

1304476C1

SHIM

- roller

8шт.

69

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

70

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

71

495-11081

WASHER,3/4", SAE

2шт.

72

1304474C1

BAR

ARM - roller

4шт.

73

1304217C92

BEARING,50.8 mm OD x 50.8, 31.7 mm

- track roller

8шт.

74

1304473C1

BUSHING

- roller arm

4шт.

75

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

76

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

77

1314144C1

GUARD

- motor

1шт.

78

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

79

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
