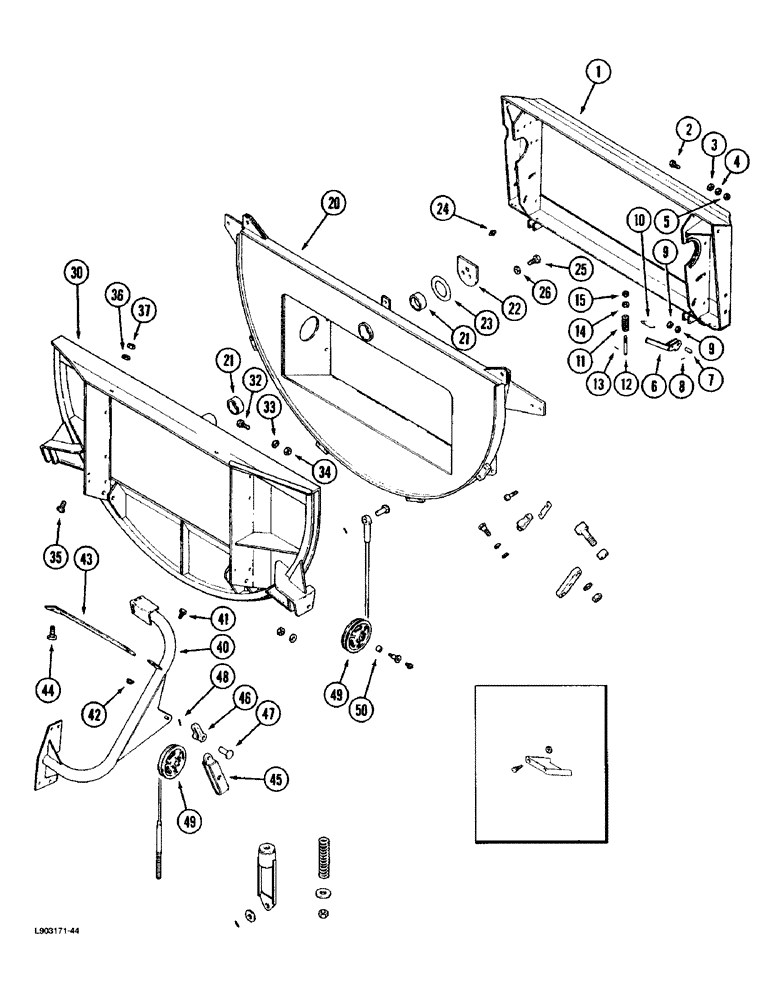

Запчасти Case IH 1670 (9A-28) - FEED BEATER (13) - FEEDER

1

1314026C2

ADAPTER

HOUSING - feeder adapter

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

3

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

179024C1

HINGE

HANDLE - lock, latch

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

8

138-2005

PIN,1/4" x 1", Coiled

4шт.

9

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

10

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, (Replaces pin 18518R1) 1/8" x 1", Slotted

2шт.

11

367833R1

SPRING

- rod, latch

2шт.

12

177138C1

ROD

- latch

2шт.

13

1338021C1

PIN,7.94mm OD

- retaining, latch

2шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

1314012C93

HOUSING ASSY.

HOUSING ASSEMBLY - feed beater, Includes: Ref. 21

1шт.

21

1304162C1

BUSHING,76.71mm ID x 79.91mm OD x 31.75mm L

- housing

2шт.

22

1314023C1

BAR

PLATE - beater housing

1шт.

23

1314020C1

THRUST WASHER

- bearing thrust

1шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

25

12-1476

SCREW,Hex, 5/8" x 1 1/4", Gr 8

BOLT - hex, 5/8 NC x 1-1/4 inch, grade 8 (Replaces bolt 26321R1)

2шт.

26

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

2шт.

30

1304169C2

FEEDER

HOUSING - beater circle

1шт.

32

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

425-1010

NUT,5/8"-11, G5

1шт.

35

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

1304211C2

SUPPORT

BRACKET - cable leveling, left-hand (Replaces bracket 1304211C1)

1шт.

40

1304212C2

SUPPORT

BRACKET - cable leveling, right-hand (Replaces bracket 1304212C1)

1шт.

1304212C2 R.H. IS SHOWN.

1шт.

41

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

43

1331270C1

BAR

BRACE - leveling support

2шт.

44

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

45

1304213C1

YOKE

BLOCK - pulley

2шт.

46

374753R1

STIRRUP

SHACKLE - block

2шт.

47

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

PIN - headed, 1/2 x 2 inch

4шт.

48

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

49

634956R11

PULLEY

ASSEMBLY - swivel cable, Includes: Ref. 50

4шт.

50

574859R1

BUSHING

- arm

1шт.
