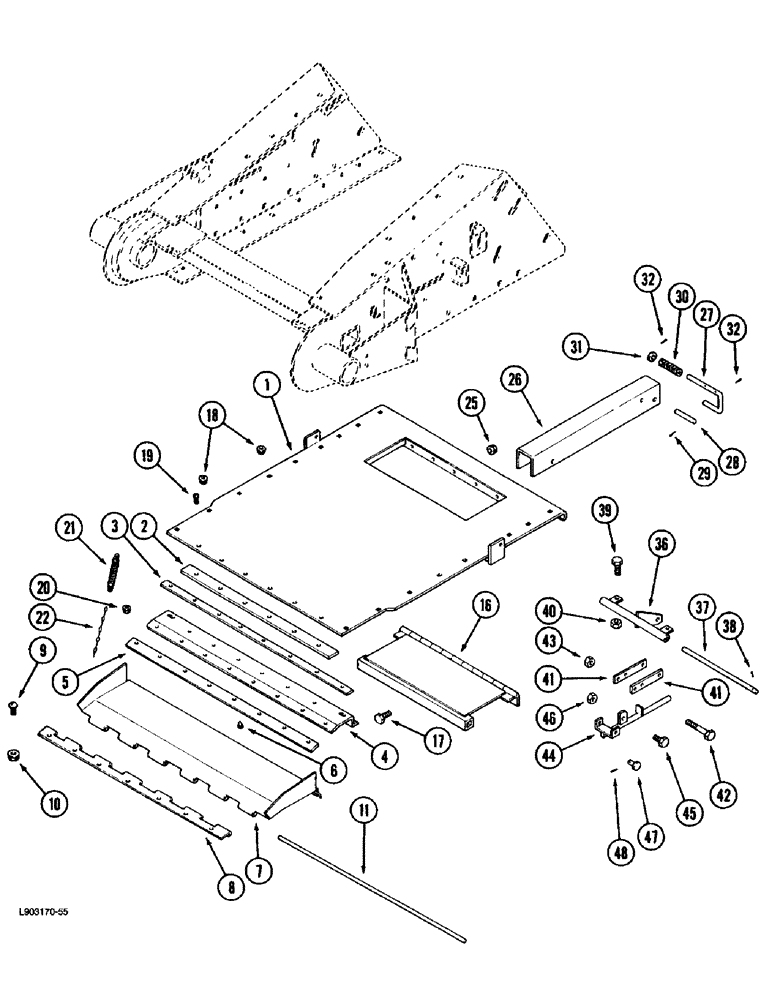

Запчасти Case IH 1670 (9A-26) - 1304946C2 FEEDER (13) - FEEDER

1

1304946C2

SUPPORT

PLATFORM - feeder bottom

1шт.

2

1319965C1

BAR

- spacer, support

1шт.

3

197429C1

SEALING STRIP

SEAL - door

1шт.

4

1319961C1

SUPPORT

- bottom, feeder rear

1шт.

5

1319963C1

SEAL

SEAL - rear, feeder

1шт.

6

499453C1

RIVET

- 5 x 18 mm

1шт.

7

193363C3

DOOR SEAL

DOOR - feeder bottom

1шт.

8

193364C2

HINGE

- door

1шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

7шт.

10

231-5146

FLANGE NUT,3/8"-16

7шт.

11

159012C1

ROD

- hinge

1шт.

16

1304940C2

DOOR

- feeder bottom

1шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

18

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex flange, special, 3/8 inch NC

2шт.

19

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat Phillips, No. 10 NC x 3/4 inch

1шт.

20

196922C1

LOCK NUT

- hex, self-locking, No. 10

1шт.

21

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

22

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

25

231-5146

FLANGE NUT,3/8"-16

6шт.

26

197554C3

CHANNEL

- lift cylinder lock

1шт.

27

197849C1

ROD

- cylinder lift lock

1шт.

28

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

29

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

30

M296

SPRING

- compression

1шт.

31

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

32

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

1шт.

36

1304958C2

TUBE

- door latch

1шт.

37

1304953C1

ROD

- latch pivot

1шт.

38

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

39

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

1304956C1

BAR

LINK - connecting

2шт.

42

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

43

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

44

1304951C1

SUPPORT

HANDLE - door latch

1шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

46

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

47

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - clevis, 3/8 x 3/4 inch (Replaces pin 21888R1)

2шт.

48

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.
