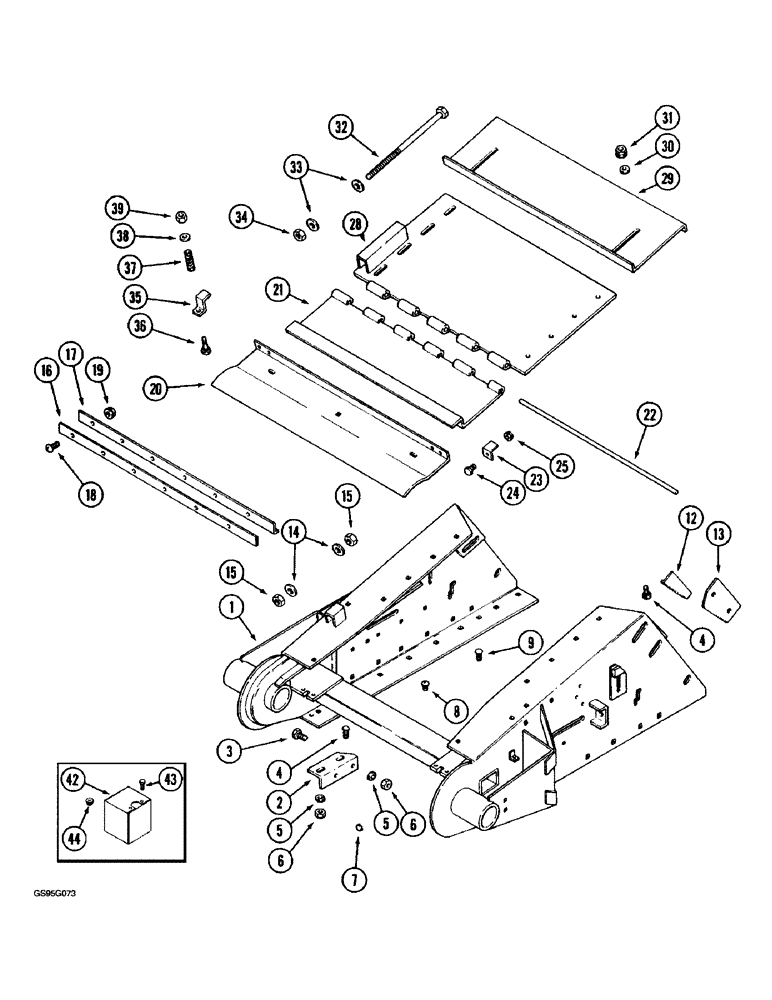

Запчасти Case IH 1670 (9A-22) - FEEDER DRIVE, (CONT) (13) - FEEDER

58

1304060C2

V-BELT,149.99" L

Drive Feeder 149.99" L

1шт.

59

1304075C2

PULLEY

- driven, feeder

1шт.

60

188315C1

DOOR

- access, belt drive cover

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

63

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

65

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

66

1304736C91

COVER

SHIELD ASSEMBLY - belt, Includes: Ref. 67

1шт.

67

188199C1

PRODUCT GRAPHIC

DECAL - caution, parts list figure 9H-36

1шт.

68

133405C92

CYLINDER

ASSEMBLY - feeder, parts list figure 8-68

1шт.

68

87337239R

REMAN-HYD CYLINDER

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), P.I.N. JJC0080540 AND AFTER, Assembly, Feeder (8/90-), Reman for New PN 133405C92

1шт.

68

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

69

100-11150

SNAP RING,#150, Ext

Ring, Snap, , spring rod #150, Ext

1шт.

70

194521C1

SUPPORT

- gear case

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

73

231-5146

FLANGE NUT,3/8"-16

6шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

SEAL - 10-5/8 inch (270 mm) long

1шт.

77

191399C1

SUPPORT

- gear housing rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

79

231-5146

FLANGE NUT,3/8"-16

7шт.

80

191496C1

SEALING STRIP

SEAL - 11-7/8 inch (300 mm) long

1шт.

82

191595C91

JOINT ASSY.

JOINT ASSEMBLY - drive, parts list figure 9A-8

1шт.

84

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

85

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

87

1304093C1

SUPPORT

- shield, upper

1шт.

88

191603C2

PULLEY

- drive, 12 inch O.D.

1шт.

92

231-5146

FLANGE NUT,3/8"-16

12шт.

102

1304717C2

ANGLE

BRACKET - feeder drive belt

1шт.
