Запчасти Case IH 1670 (9H-34) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

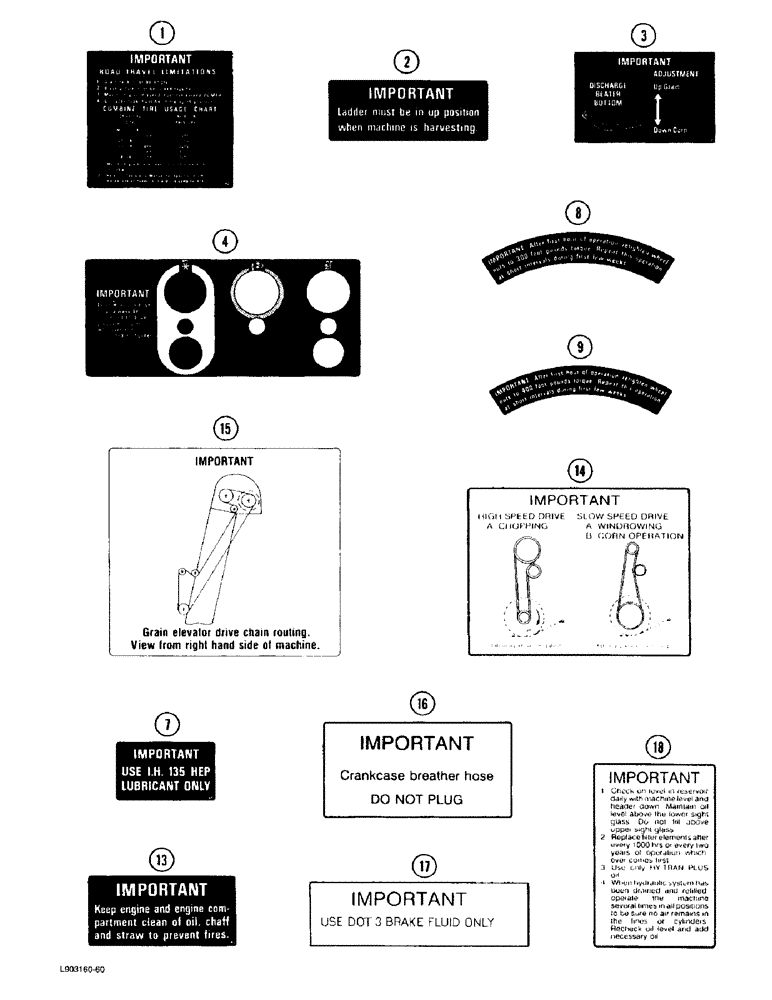

Схема запчастей Case IH 1670 - (9H-34) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS
2
1
15
4
14
16
8
9
17
7
13
3
18

Артикул

Название

Примечание

Количество

1

1980011C1

PRODUCT GRAPHIC

DECAL - Important, tire chart

1шт.

2

186507C1

PRODUCT GRAPHIC

DECAL - Important, ladder must be in up position

1шт.

3

185441C1

PRODUCT GRAPHIC

DECAL - Important, discharge beater bottom

2шт.

4

1327572C1

DECAL

- Important, drive return

1шт.

7

186051C1

PRODUCT GRAPHIC

DECAL - Important, use I.H. 135 HEP lubricant only

1шт.

8

180536C1

PRODUCT GRAPHIC

DECAL - Important, wheel torque, 300 foot pounds

2шт.

9

1304724C1

PRODUCT GRAPHIC

DECAL - Important, wheel torque, 400 foot pounds

2шт.

13

173881C1

DECAL

- Important, keep engine and engine compartment clean, English

1шт.

14

1302721C2

DECAL

- Important, high speed drive/slow speed drive

2шт.

15

1957261C1

DECAL

- Important, grain elevator drive chain routing

1шт.

16

1979123C2

DECAL

- Important, crankcase breather hose

1шт.

17

1347067C1

DECAL

- Important, DOT 3 brake fluid

1шт.

18

1347323C1

PRODUCT GRAPHIC

DECAL - Important, check on level in reservoir daily

1шт.

Выбрано товаров: 13
