Запчасти Case IH 1670 (9H-28) - CUTTING HEIGHT INDICATOR (12) - CHASSIS

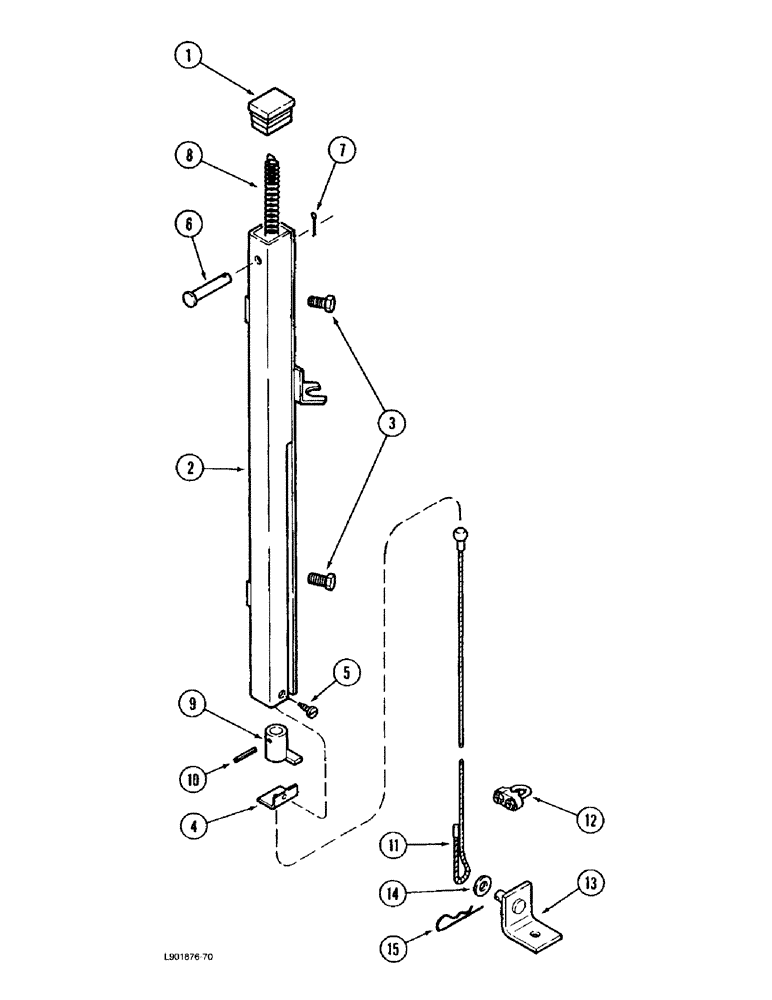

Схема запчастей Case IH 1670 - (9H-28) - CUTTING HEIGHT INDICATOR (12) - CHASSIS
5
10
8
6
9
11
15
14
4
3
13
1
2
12
7

Артикул

Название

Примечание

Количество

1

1312488C1

CAP

- height indicator

1шт.

2

1312482C2

SUPPORT

- height indicator

1шт.

3

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

4

1312483C1

ANGLE

BRACKET - height indicator

1шт.

5

934666R1

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

SCREW - self-tapping, pan head, 10 x 10 mm

4шт.

6

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

1шт.

7

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

1312489C1

SPRING

- tension

1шт.

9

1312492C1

HOOK

- indicator

1шт.

10

30835R1

PIN,M3 x 24, Coiled

- roll, 3 x 24 mm (Replaces roll pin 932265R1)

1шт.

11

3168318R2

CABLE

- height indicator

1шт.

12

715945R91

CLAMP

- height cable

1шт.

13

1312485C2

SUPPORT ASSY.

SUPPORT - indicator

1шт.

14

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

15

153528C1

COTTER PIN

- quick attach (Replaces pin 3014430R1)

1шт.

Выбрано товаров: 15
