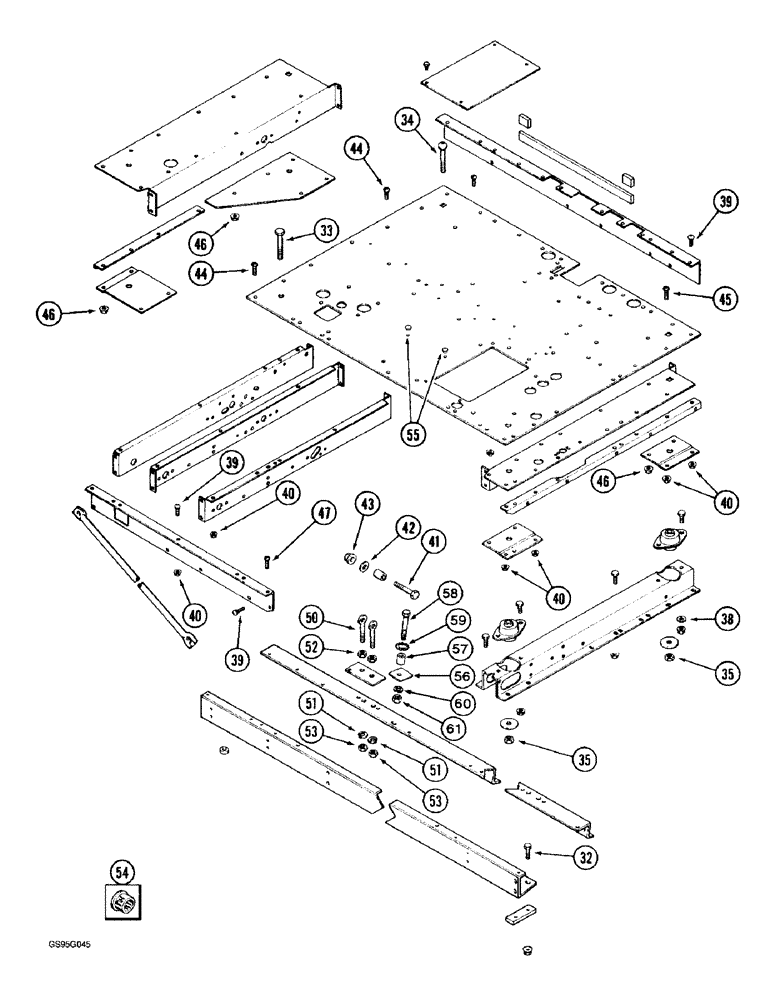

Запчасти Case IH 1670 (9H-26) - OPERATORS PLATFORM (12) - CHASSIS

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Continued from 9H-24

4шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

31шт.

41

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

43

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

45

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

5шт.

46

231-5146

FLANGE NUT,3/8"-16

7шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

50

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYEBOLT - leveling

4шт.

51

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

52

425-1012

NUT,3/4"-10, G5

4шт.

53

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

4шт.

54

1345349C1

PLUG,Cap, .240" OD

- plastic, 7/32 inch hole

4шт.

55

1345350C1

PLUG,Cap, .366" OD

- 13/32 inch diameter hole

3шт.

56

1994748C1

SHIM

- deck mount

6шт.

57

1994749C1

SPACER

- 3/4 pipe x 2-23/64 inch

2шт.

58

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

59

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.

60

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

61

425-1012

NUT,3/4"-10, G5

2шт.
