Запчасти Case IH 1670 (9H-24) - OPERATORS PLATFORM (12) - CHASSIS

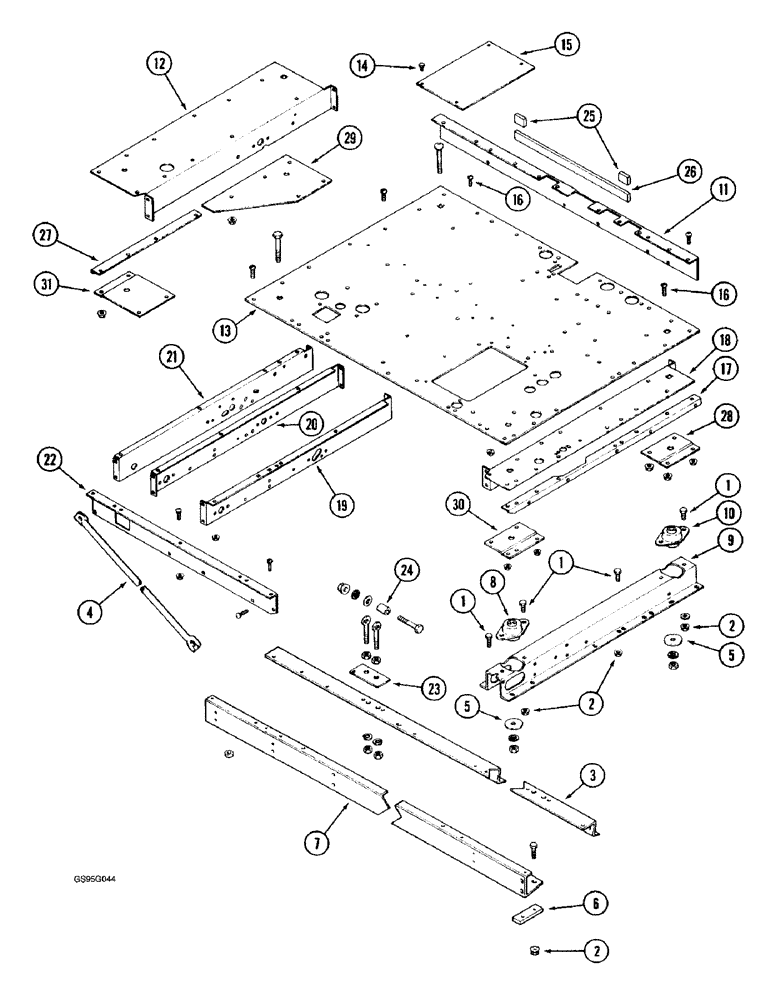

Схема запчастей Case IH 1670 - (9H-24) - OPERATORS PLATFORM (12) - CHASSIS
12
24
8
2
26
19
6
1
2
14
5
2
1
5
1
16
22
28
29
11
27
3
23
31
16
30
10
13
7
18
25
21
15
9
17
20
4

Артикул

Название

Примечание

Количество

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

3

193021C7

ANGLE

SUPPORT - operators platform, front (Replaces support 193021C6)

1шт.

4

187645C2

ROD

- operators platform extension

1шт.

5

196591C1

WASHER

- flat, special

4шт.

6

195715C1

BAR

- rear mounting channel, 1/2 inch, if used

2шт.

6

193428C1

BAR

- rear mounting channel, 5/8 inch, if used

2шт.

7

193022C2

SUPPORT

- operators platform, rear

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear

2шт.

9

195507C6

SUPPORT

- operators platform, side

2шт.

10

117722C4

INSULATOR

- vibration, front

2шт.

11

1327564C2

SUPPORT

- operators platform, front

1шт.

12

195520C3

SUPPORT

- operators platform, left-hand

1шт.

13

1979832C1

PLATE

- operators

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

15

193029C2

PLATE

- brake access rear

1шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

11шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

11шт.

17

196969C4

SUPPORT

- platform stiffener

1шт.

18

195518C8

SUPPORT

- operators platform, right-hand

1шт.

19

195519C6

SUPPORT

- operators platform, right-hand center

1шт.

20

195521C4

SUPPORT

- operators platform, center

1шт.

21

195557C7

SUPPORT

- operators platform, left-hand center

1шт.

22

195516C4

SUPPORT

- operators platform, left-hand

1шт.

23

196592C2

BAR

- leveling

2шт.

24

591070R1

SPACER,3/4" Pipe x 1 7/16"

- operators platform

2шт.

25

NSS

NOT SOLD SEPARAT

STRIP - cab sill to front support seal, 2 inch long, cut from 187885C1 seal, Ref. 26

2шт.

26

187885C1

SEALING STRIP

- 26 inch (660 mm) long, cut from 87281C1 bulk seal, see below

1шт.

27

183680C1

ANGLE

- stiffener

1шт.

28

183668C2

PLATE

- platform, right-hand front

1шт.

29

183669C2

PLATE

- platform, left-hand front

1шт.

30

183678C1

PLATE

- platfrom, right-hand rear

1шт.

31

183679C1

PLATE

- platform, left-hand rear

1шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 34
