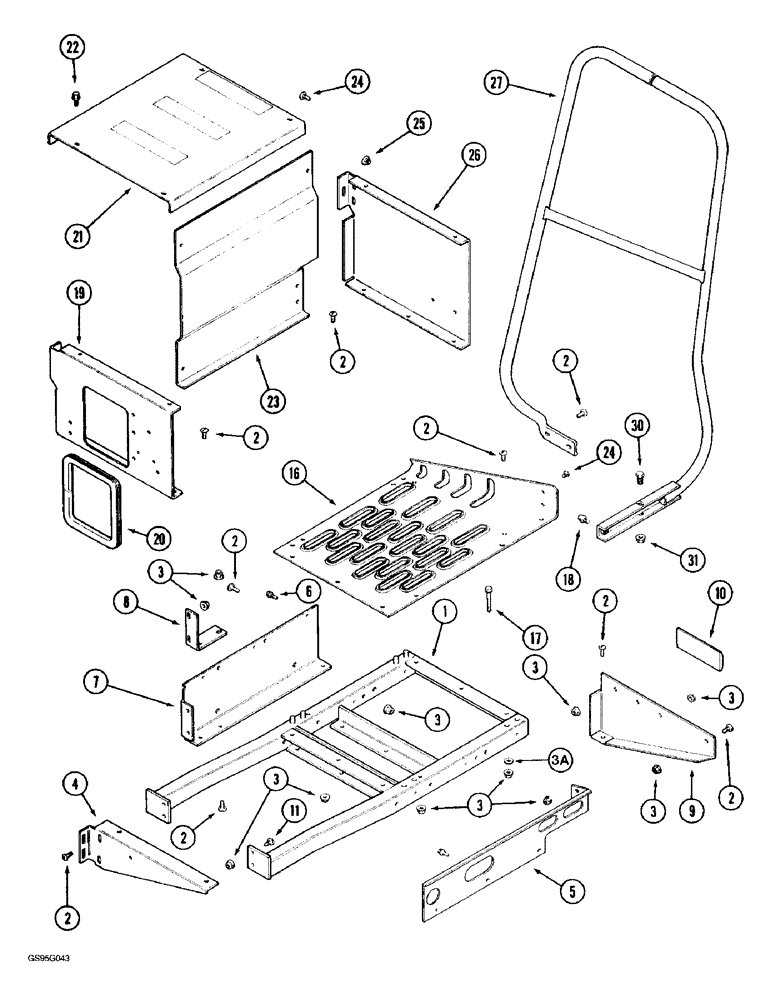

Запчасти Case IH 1670 (9H-22) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

198535C4

SUPPORT

- extension

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

3a

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

3шт.

4

1338309C2

SUPPORT

- operators platform extension (Replaces support 1338309C1)

1шт.

5

198542C3

SUPPORT

- extension, right-hand (Replaces support 198542C2)

1шт.

6

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

3шт.

7

198543C3

SUPPORT

- platform extension, left-hand

1шт.

8

183761C1

ANGLE

- rear extension

1шт.

9

198541C3

SUPPORT ASSY.

SUPPORT - platform extension, front

1шт.

10

174732C1

REFLECTOR

- amber

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

16

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

19

1338306C3

SHEET

SUPPORT - valve box, rear (Replaces support 1338306C1)

1шт.

20

98130C2

SEAL

TRIM - edge, 27 inch (686 mm) long, cut from 1330108CX bulk trim, see below

1шт.

21

1338308C1

COVER ASSY

SUPPORT - valve box cover

1шт.

22

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - self-tapping, hex washer head, 3/8 NC x 3/4 inch

4шт.

23

1338304C2

SHEET ASSY.

SUPPORT - valve box, left-hand (Replaces support 1338304C1)

1шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

26

1338305C3

SUPPORT

- valve box, front (Replaces support 1338305C1)

1шт.

27

198548C2

RAIL

- hand, platform extension, front

1шт.

30

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, 50 foot roll

1шт.
