Запчасти Case IH 1670 (9H-20) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

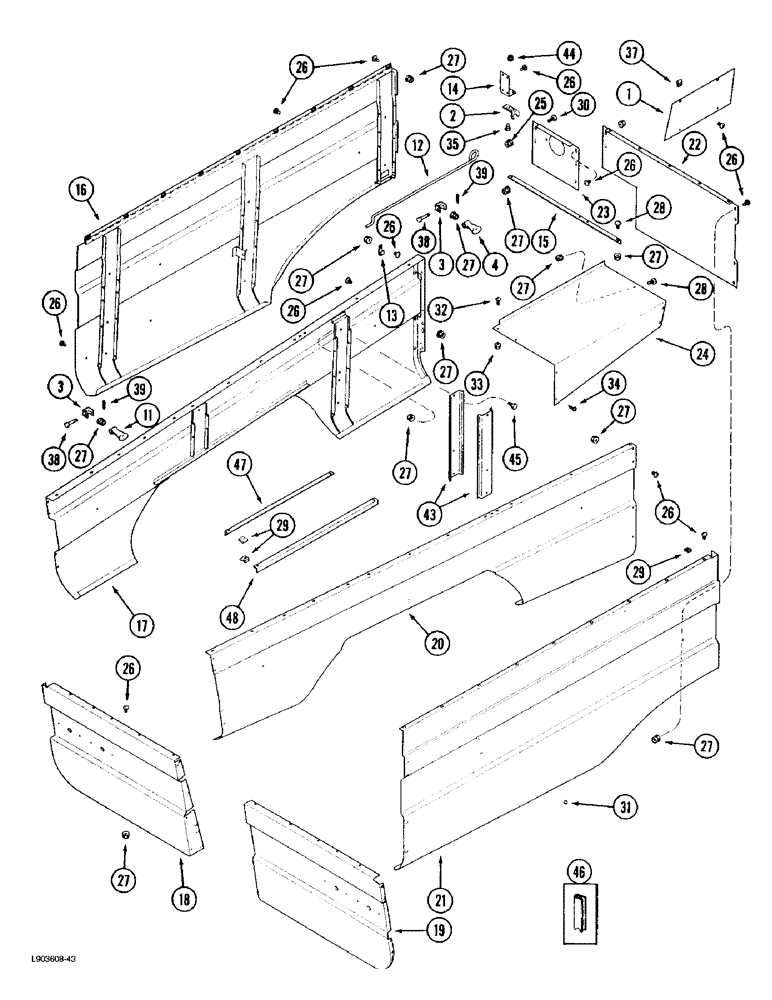

Схема запчастей Case IH 1670 - (9H-20) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS
44
27
26
27
43
12
26
27
25
26
27
32
15
29
29
37
27
34
262
23
27
45
28
26
31
11
16
22
13
38
4
27
20
3
27
1
33
30
28
21
39
26
26
35
26
19
27
27
26
2
3
27
46
14
27
48
19
38
24
18
47
39

Артикул

Название

Примечание

Количество

1

188160C2

SUPPORT ASSY.

PLATE - cab, lower right-hand front

1шт.

2

L105124

LATCH HOOK

HOOK - latch (Replaces hook 764071C1)

2шт.

3

188103C1

BRACKET

- hook anchor

2шт.

4

494307C1

LATCH

HOOK - hold down, latch

2шт.

12

183444C1

ROD

- tank lower door, left-hand

1шт.

13

362123R1

CLIP

CLAMP - trim sheet brace

1шт.

14

188156C2

SUPPORT

- trim rear catch

1шт.

15

194604C3

ANGLE BAR

ANGLE - shield support

2шт.

16

186789C4

DOOR

SUPPORT - grain tank trim, left-hand front (Replaces support 186789C1 )

1шт.

17

1304050C2

SHIELD

- rear trim, left-hand

1шт.

18

104148A3

SUPPORT

- tail lamp, left-hand (Replaces support 193811C3)

1шт.

19

193812C5

SHEET

SUPPORT - tail lamp, right-hand (Replaces support 193812C3)

1шт.

20

1304051C3

SHIELD

- rear trim, right-hand

1шт.

21

188152C2

SUPPORT

- grain tank trim

1шт.

22

193151C1

SUPPORT

- lower front, left-hand

1шт.

23

194452C2

SUPPORT

- gear case, front

1шт.

24

193443C2

SUPPORT

- feeder drive, upper

1шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

62шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

89шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

22шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

22шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch NC

6шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

31

147483C1

PLUG

- button

8шт.

32

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

33

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

34

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, (Replaces bolt 172455) Hex Hd, 5/16" x 3/4"

2шт.

35

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 x 3/4 inch (Replaces screw 436734)

4шт.

37

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 NC (Replaces nut 403276R1)

2шт.

38

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

2шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

46

1304749C1

SEALING STRIP

- trim

1шт.

47

1304760C1

ANGLE

BRACKET - support, left-hand

1шт.

48

1304748C1

ANGLE

BRACKET - support, right-hand

1шт.

Выбрано товаров: 38
