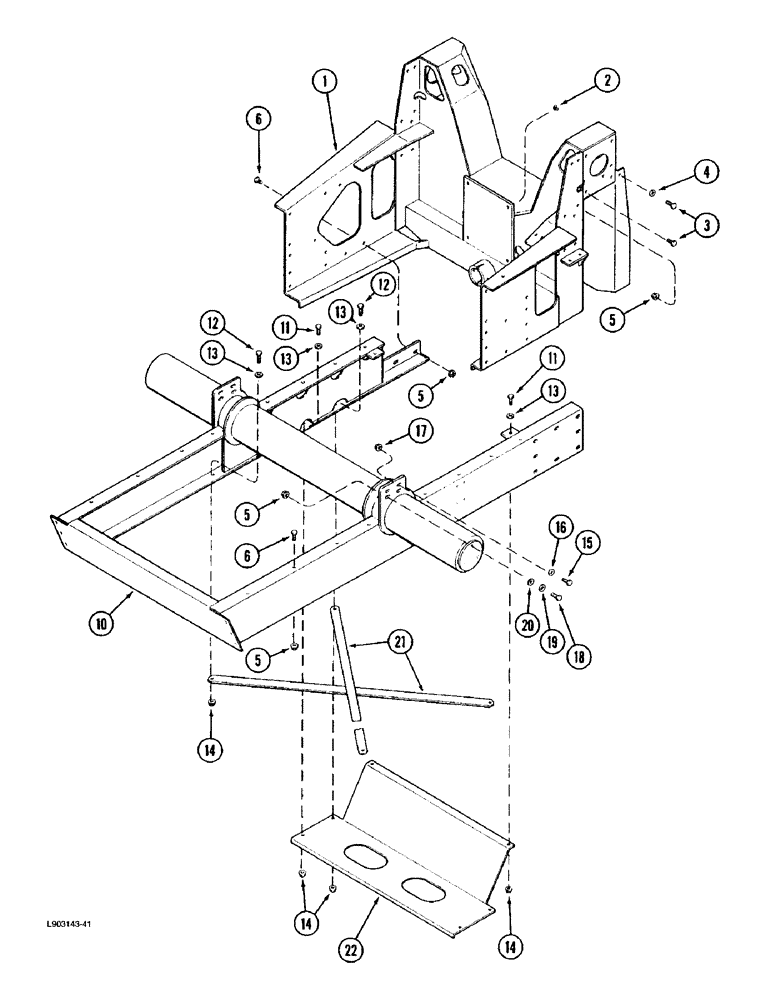

Запчасти Case IH 1670 (9H-18) - MAIN FRAME AND BEAM BOX (12) - CHASSIS

1

1304155C2

SUPPORT

BOX - beam

1шт.

2

54700R1

DOWEL

BUSHING - tapered split dowel

2шт.

3

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

If used Hex, 5/8"-11 x 1 1/2", G8, Full Thd

1шт.

3

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

If used Hex, 5/8"-11 x 1 3/4", G8, Full Thd

1шт.

4

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

1шт.

5

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

1шт.

6

326-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

1шт.

10

1304110C2

SUPPORT

FRAME - main

1шт.

11

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

12

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

14

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

4шт.

15

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

4шт.

16

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

19

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

1шт.

20

1304738C1

WASHER

- hardened

1шт.

22

1304135C1

SUPPORT

SHIELD - frame bottom

1шт.

21

1304331C1

BAR

BRACE - cross

2шт.
