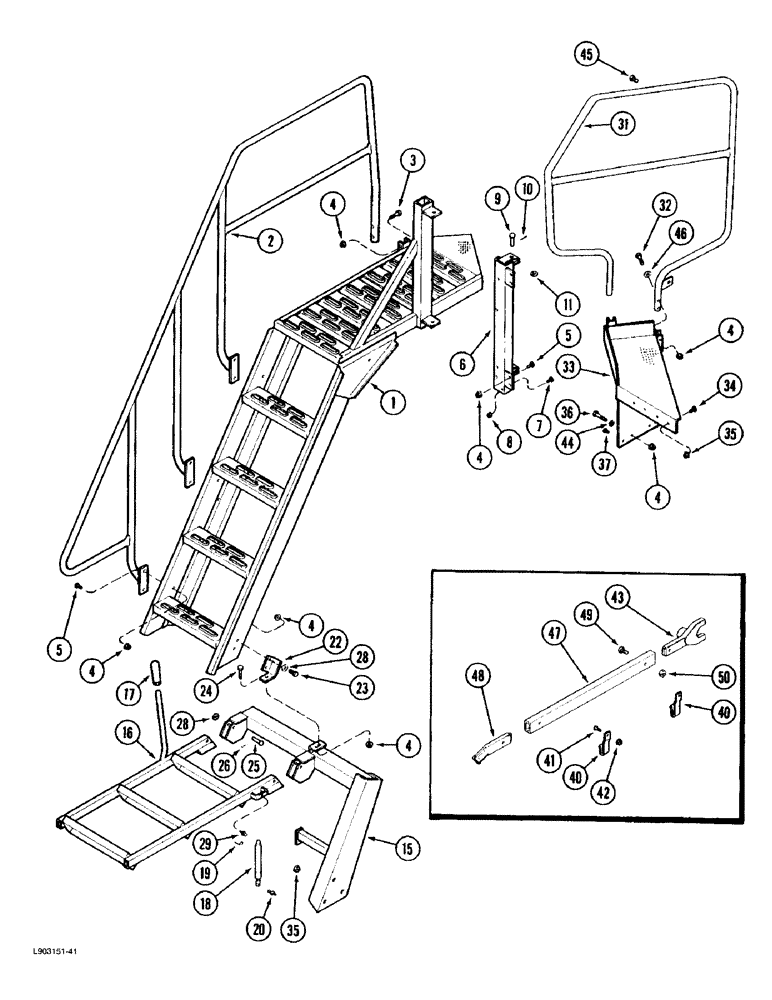

Запчасти Case IH 1670 (9H-16) - MAIN LADDER (12) - CHASSIS

1

1304732C91

LADDER

ASSEMBLY - main platform, Includes caution decal

1шт.

2754442R1

PRODUCT GRAPHIC

DECAL - Caution, keep off while machine is in motion, see figure 9H-36

1шт.

2

1304530C2

RAIL

HANDRAIL - ladder

1шт.

3

424-632

BOLT,Hex, 3/8" - 16 x 2", Gr 2

Hex, 3/8"-16 x 2", G2

4шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

6

1304519C1

SUPPORT

- grain tank mounting

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

439-1816

HEADED PIN,1/2" x 1"

PIN - headed, 1/2 x 1 inch, grade 2 (Replaces pin 21341R1)

2шт.

10

432-1216

COTTER PIN,3/16" x 1"

2шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

15

1304745C91

SUPPORT

ASSEMBLY - ladder, Includes caution decal

1шт.

2754442R1

PRODUCT GRAPHIC

DECAL - Caution, keep off while machine is in motion, see figure 9H-36

1шт.

16

1304525C2

LADDER

- swinging

1шт.

17

198934C1

HANDLE

- gear shift

1шт.

18

1304523C91

CYLINDER

ASSEMBLY - gas spring, Includes: Ref. 19

1шт.

19

1304647C1

CLIP

- retaining

2шт.

20

1340345C1

BALL STUD

STUD - ball (Replaces stud F44882)

2шт.

22

1304553C1

SUPPORT

BRACKET - latch

1шт.

23

424-612

BOLT - hex, 3/8 NC x 2 inch, grade 2

2шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

25

427-6200

CLEVIS PIN,3/8" x 2", HDN

2шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

31

1331326C1

RAIL

HANDRAIL - extension step

1шт.

32

424-632

BOLT,Hex, 3/8" - 16 x 2", Gr 2

Hex, 3/8"-16 x 2", G2

4шт.

33

1304498C1

SUPPORT

- platform extension

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

36

424-636

BOLT - hex, 3/8 NC x 2-1/4 inch, grade 2

2шт.

37

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - self-tapping, hex washer head, 1/4 NC x 3/4 inch (Replaces bolt 28059R1)

2шт.

40

1979908C1

CLIP

- rocking wrench

2шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

2шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

43

1979527C1

WRENCH-HOOK

WRENCH - rocking

1шт.

44

492-11038

LOCK WASHER,3/8"

2шт.

45

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

47

1979526C2

HANDLE

SUPPORT - wrench handle (Replaces support 1979526C1)

1шт.

48

1979751C2

BAR

- rotor rocker (Replaces bar 1979751C1)

1шт.

49

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

50

231-5146

FLANGE NUT,3/8"-16

2шт.
