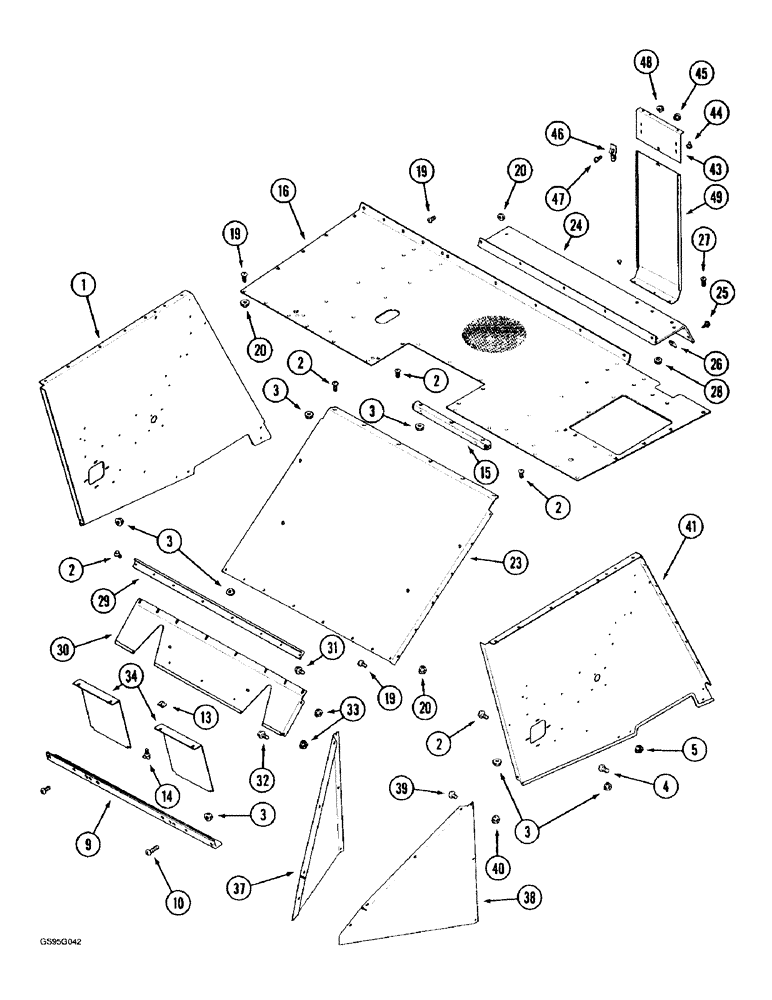

Запчасти Case IH 1670 (9H-08) - SEPARATOR SIDES (12) - CHASSIS

1

1304456C2

SUPPORT

SIDE - separator, left-hand

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

29шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

29шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

6шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

9

192309C2

ANGLE

- rear support

1шт.

10

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

13

488837C1

SPRING NUT

- speed, 5/16 inch NC

4шт.

14

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch (Replaces screw 176978C1)

4шт.

15

186971C1

ANGLE

- rear deck support

1шт.

16

1317744C7

SHEET

SUPPORT - rear deck (Replaces support 1317744C2)

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

26шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

25шт.

23

1324988C2

PROTECTION PLATE

DEFLECTOR - straw discharge (Replaces deflector 1324988C1)

1шт.

24

1324966C2

SHEET

SUPPORT - engine deck

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

5шт.

26

541310R1

SPRING NUT

- speed, 5/16 inch

3шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

8шт.

28

231-5146

FLANGE NUT,3/8"-16

8шт.

29

194305C1

ANGLE

- deflector stiffener

1шт.

30

195138C5

SUPPORT

- dust shield

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

34

1300294C91

SUPPORT

- hood rear access, with decals

2шт.

37

1302105C1

DEFLECTOR

SUPPORT - corner, left-hand

1шт.

38

1302106C1

DEFLECTOR

SUPPORT - corner, right-hand

1шт.

39

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

10шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

41

1309439C91

SUPPORT

SIDE ASSEMBLY - separator, Includes caution decal

1шт.

185442C1

DECAL

- Caution, engine must be shut off, see figure 9H-36

1шт.

43

1970187C3

ANGLE

SUPPORT - air shield

1шт.

44

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

46

167800C1

CLIP

- door retaining clip

2шт.

47

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

48

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

49

1977286C1

SUPPORT

- air shield

1шт.
