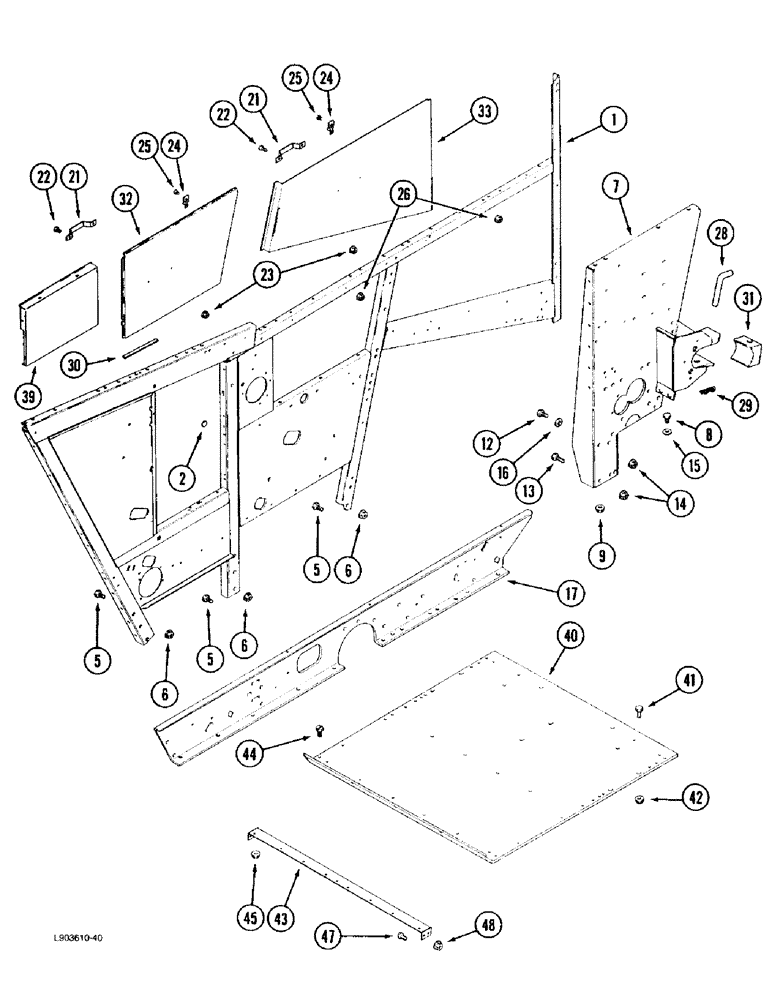

Запчасти Case IH 1670 (9H-06) - SEPARATOR DOORS, SIDE AND SUPPORTS, LEFT HAND SIDE (12) - CHASSIS

1

1979784C2

STIFFENER

SIDE - separator, left-hand

1шт.

2

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

9шт.

6

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

9шт.

7

1304100C4

POST

- separator side, left-hand front

1шт.

8

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

6шт.

9

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

6шт.

12

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

4шт.

13

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

14

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

6шт.

15

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

16

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

6шт.

17

1330362C1

RESTRICTOR

SUPPORT - separator, left-hand side

1шт.

21

160638C1

HANDLE

- separator door

2шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

167800C1

CLIP

- door retaining clip

10шт.

25

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

10шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

28

192533C2

ROD

- feeder pivot block

1шт.

29

1978738C1

HAIR PIN COTTER

3/16" diameter

1шт.

30

188062C1

STRIP

SEAL - door, 5-1/2 inch long, cut from 1338148CX bulk seal

1шт.

31

1989327C1

RETAINER

BLOCK - feeder pivot (Replaces block 193834C1)

1шт.

32

186188C91

DOOR

ASSEMBLY - separator, left-hand, Includes danger decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped, see figure 9H-36

1шт.

33

186178C91

DOOR

ASSEMBLY - separator, left-hand front, Includes danger and caution decals

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped, see figure 9H-36

1шт.

185035C1

PRODUCT GRAPHIC

DECAL - Caution, shut off engine before adjusting concave, see figure 9H-36

1шт.

39

181085C2

DOOR

- separator

1шт.

40

1324970C2

PLATE

- engine deck

1шт.

41

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

43

195316C1

SUPPORT ASSY.

SUPPORT - engine deck

1шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

12шт.

45

231-5146

FLANGE NUT,3/8"-16

12шт.

47

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

48

231-5146

FLANGE NUT,3/8"-16

4шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
