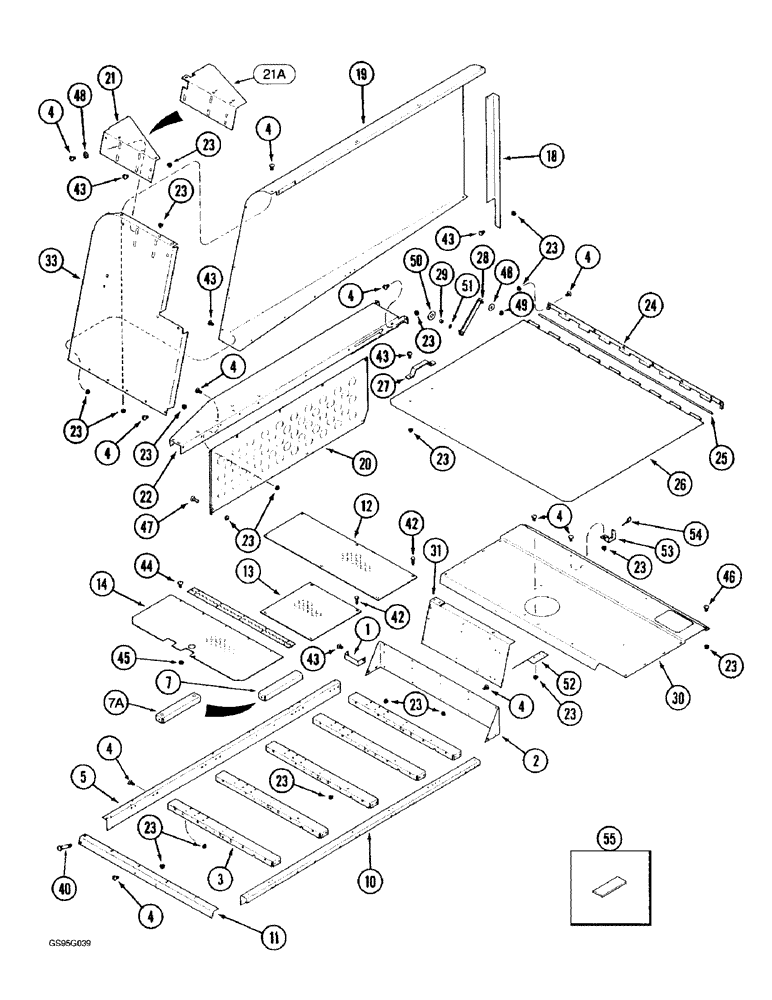

Запчасти Case IH 1670 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

188419C1

CHANNEL

BRACKET - grain tank, upper left-hand rear

1шт.

2

193435C3

SUPPORT

- engine service deck (Replaces support 193435C2)

1шт.

3

192959C6

SUPPORT

- deck (Replaces support 192959C5)

5шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

69шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

5

188368C3

ANGLE

BRACKET - left-hand deck support (Replaces bracket 188368C2)

1шт.

7

1979830C1

SUPPORT

- deck, if used

1шт.

7a

194461C1

SUPPORT

- deck, 2-holed top, if used

1шт.

10

192960C7

ANGLE BAR

SUPPORT - right-hand deck

1шт.

11

193146C4

ANGLE

- engine deck (Replaces angle 193146C3)

1шт.

12

1989202C2

PLATE - engine compartment, front (Replaces plate 1989202C1)

1шт.

13

1989200C2

PLATE - engine compartment (Replaces plate 1989200C1)

1шт.

14

1347443C1

DOOR

- deck, engine

1шт.

18

188377C1

ANGLE

- shield stiffener, upper left-hand

1шт.

19

1347060C2

SUPPORT

- rear upper left-hand trim (Replaces support 1347060C1)

1шт.

20

1302703C2

SHEET ASSY.

PLATE - rotor cover (Replaces plate 1302703C1)

1шт.

21

1330481C2

SUPPORT

- LH Rear, Upper shield, if used (Replaces support 1330481C1)

1шт.

21a

195356C1

SUPPORT

- upper shield, left-hand rear, if used

1шт.

22

1338070C1

SUPPORT - door and hood

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

115шт.

24

194477C2

HINGE

- rotor cover door, front

1шт.

25

194478C1

ROD

- rotor door hinge

1шт.

26

194471C5

DOOR

- engine and rotor drive cover

1шт.

27

160638C1

HANDLE

- rotor door

1шт.

28

1302413C1

PROP

LINK - front, door hold up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

1шт.

30

1329773C4

SUPPORT ASSY.

SUPPORT - top cover

1шт.

31

1979873C2

SUPPORT

- air cleaner

1шт.

33

1347130C1

PROTECTION PLATE

SUPPORT - engine, left-hand rear (Replaces 1347061C2)

1шт.

38

186695C1

HINGE

- separator door

1шт.

40

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

20шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

29шт.

44

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

18шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

48

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch (Replaces washer 20893R1)

2шт.

49

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

2шт.

50

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

1шт.

51

567532R1

WASHER

- flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

52

1979353C1

DEFLECTOR

- air

1шт.

53

1979316C3

SUPPORT

- engine compartment door (Replaces support 1979316C2)

1шт.

54

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

55

D55216

PAD,2" x 9"

PAD - anti-skid

10шт.
