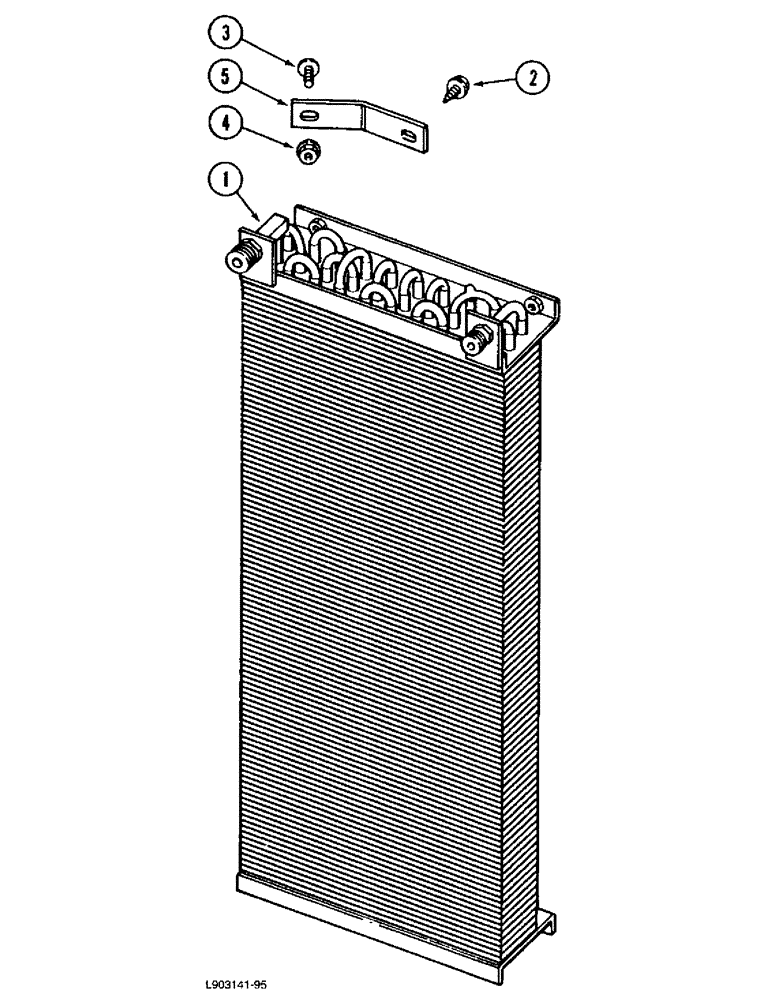

Запчасти Case IH 1670 (9G-36) - CONDENSER COIL AND SUPPORT (10) - CAB & AIR CONDITIONING

1

84581C1

CONDENSER

- air conditioning

1шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

8шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

5

1324915C2

SUPPORT

BRACKET - condenser support

2шт.
