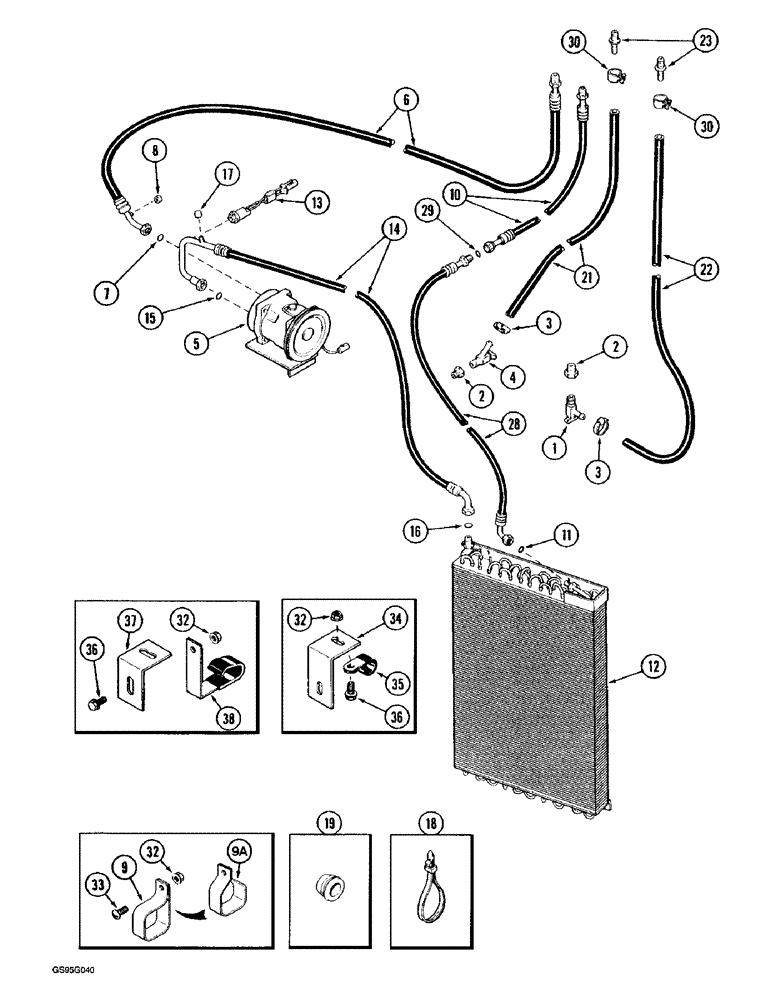

Запчасти Case IH 1670 (9G-32) - HEATER AND AIR CONDITIONING SYSTEM, COMBINE CHASSIS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

REDUCER, 1/2"-14 NPTF x 3/8"-18 Fem NPTF

2шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

2шт.

4

941980R91

LOCK VALVE

VALVE - heater, no longer available, order valve 301803R1

1шт.

5

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list figure 9G-40

1шт.

5

1977959C1R

REMAN-A/C COMPRESSOR

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), COMPRESSOR ASSEMBLY (8/90-)

1шт.

5

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

98042C2

HOSE ASSY.

HOSE ASSEMBLY - 187 inch (4750 mm) long, Includes: Ref. 7 and 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

9

154695C2

CLAMP

CLAMP - coated hose, heater only, if used

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID, heater and air conditioning, if used

1шт.

9a

1347292C1

CLAMP

CLAMP - coated hose, if used

1шт.

10

1321292C4

HOSE

HOSE ASSEMBLY - 187 inch (4743 mm) long, Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

12

84581C1

CONDENSER

CONDENSER - air conditioning

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

14

98043C2

HOSE ASSY.

HOSE ASSEMBLY - 71 inch (1800 mm) long, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

2шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 14 inch, if used

1шт.

18

702093C1

CABLE TIE

CABLE STRAP STRAP - tie, self-locking, black, if used

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 5/8 inch ID

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 3/4 inch ID

3шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - heater hose, 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - hose, 1 inch ID

2шт.

21

1958955C1

HOSE

HOSE - heater, 255 inch, cut from 97252C bulk hose

1шт.

22

1979229C1

LARGE HOSE

SPARE PART HOSE - heater, 358 inch, cut from 97252C bulk hose

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special

2шт.

28

98045C3

HOSE

HOSE ASSEMBLY - 62 inch (1560 mm) long (Replaces hose assembly 98045C2), Includes: Ref. 29

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

30

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

BOLT, , If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW - slotted truss head, 5/16 NC x 3/4 inch

1шт.

34

194756C2

ANGLE

ANGLE - clamp mounting front

1шт.

35

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

CLAMP, , P-type (Replaces clamp 28123R1) 1 1/2", Insul, 3/8" Bolt

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

2шт.

37

1301560C1

SUPPORT

BRACKET - clamp mounting rear

1шт.

38

1324905C1

CLIP

CLIP - air conditioner, Serial Range: hoses-condenser

1шт.

97252CX

HOSE

HOSE - bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.
