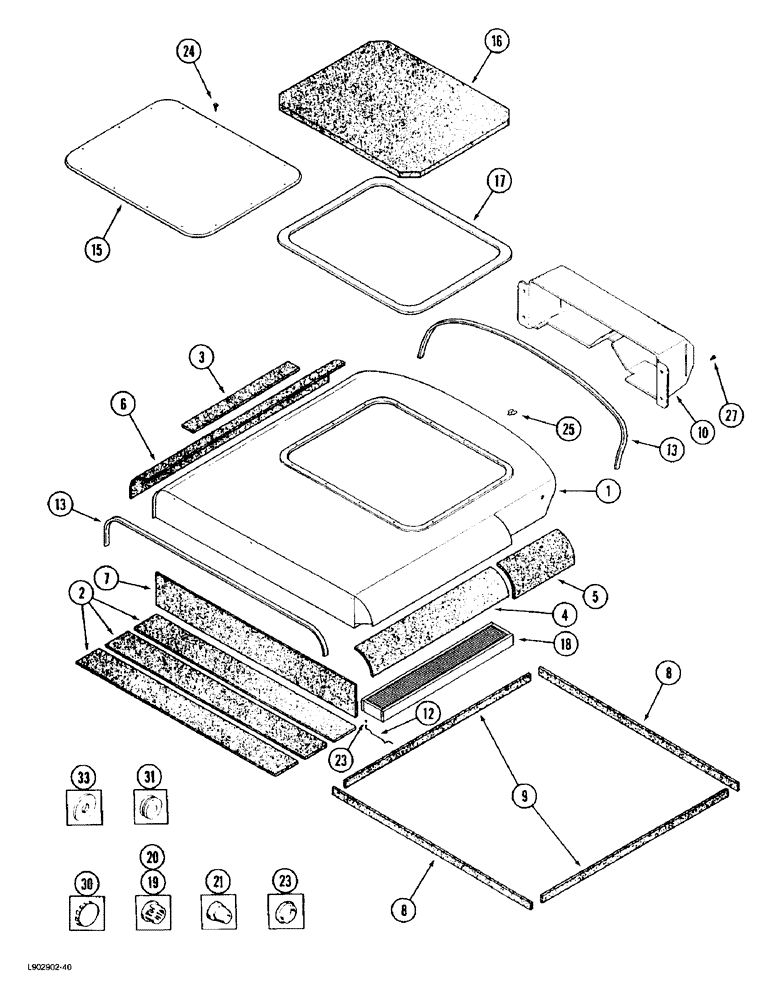

Запчасти Case IH 1670 (9G-26) - CAB ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

INSULATION - top, 12 inch, cut from 1327515C1 bulk insulation

3шт.

3

NSS

NOT SOLD SEPARAT

INSULATION - left-hand top, 12 inch, cut from 1327515C1 bulk insulation

1шт.

4

NSS

NOT SOLD SEPARAT

INSULATION - right-hand rear, 12 inch, cut from 1327515C1 bulk insulation

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATION - right-hand front, 12 inch, cut from 1327515C1 bulk insulation

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATION - left-hand side, 12 inch, cut from 1327515C1 bulk insulation

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATION - rear, 60 inch, cut from 1327515C1 bulk insulation

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - roof sides, 54 inch, cut from 182747C1 bulk seal

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - roof front and rear, 57 inch, cut from 182747C1 bulk seal

2шт.

10

1344141C1

COVER

- windshield wiper motor

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

SEAL - front and rear, 72 inch, cut from 1327666C1 bulk seal

2шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C2

INSULATOR

INSULATION - access cover (Replaces insulation 1276340C1)

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

143481C92

CAB FILTER

FILTER - air recirculation

1шт.

18

87543798

CAB FILTER

Charcoal cab filter

1шт.

19

179093

HOLE PLUG BUTTON,9/32"

8шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- rubber, diagonal cut, 5/8 inch ID

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

1327515C1

PANEL

INSULATION - bulk sheet, 10 foot long x 4-1/2 foot wide

1шт.

182747C1

DOOR SEAL

SEAL - bulk, 50 foot strip, sold by the foot

1шт.

1327666C1

SEAL

- bulk, 50 foot strip, sold by the foot

1шт.
