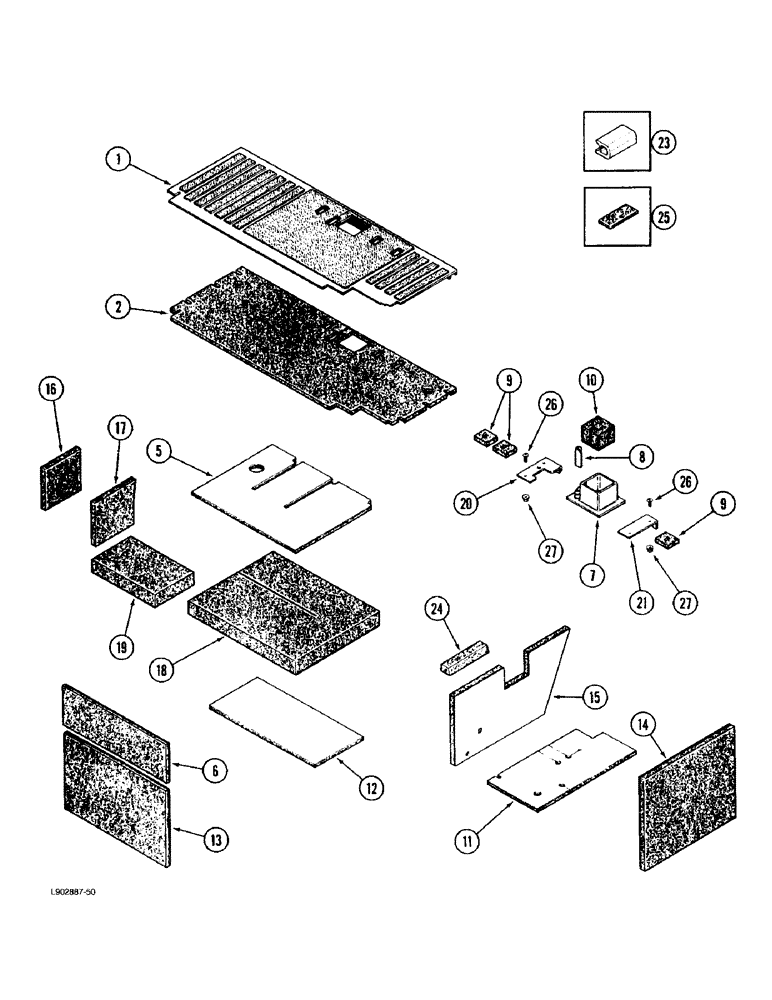

Запчасти Case IH 1670 (9G-22) - CAB INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
1
1329711C3
MAT
- floor
1шт.
2
1326885C1
INSULATOR
PAD - insulation, floor mat
1шт.
5
98123C4
SHEET ASSY.
SUPPORT - seat platform (Replaces support 98123C3)
1шт.
6
98008C2
INSULATOR
PAD - insulation, center rear support
1шт.
7
198075C1
INSULATOR
PAD - insulation, steering pedestal
1шт.
8
187581C1
ANGLE
- steering pedestal
1шт.
9
1321935C1
SEAL
- pedal
3шт.
10
1324844C1
SEAL
- steering pedestal
1шт.
11
196587C7
INSULATOR
PAD - insulation, right-hand
1шт.
12
91793C2
INSULATOR
PAD - insulation, center
1шт.
13
91790C2
INSULATOR
- sound (Replaces insulator 91790C1)
1шт.
14
1301219C2
SHEET
PAD - insulation, right-hand, outer
1шт.
15
91797C2
SHEET
PAD - insulation, right-hand, inner (Replaces insulation pad 91797C1)
1шт.
16
196598C2
SHEET
PAD - insulation, left-hand, outer
1шт.
17
1322927C2
INSULATOR
- left-hand panel (Replaces insulator 1322927C1)
1шт.
18
91791C2
INSULATOR
- center sound, if equipped
1шт.
19
91792C3
SHEET ASSY.
COVER - manual box sound (Replaces cover 91792C2)
1шт.
20
1327567C1
PLATE
- boot hold-down, left-hand
1шт.
21
1327568C1
PLATE
- boot hold-down, right-hand
1шт.
23
1330107C2
STRIP
TRIM - rear inside edge to cab, 27-1/2 inch, cut from 1330108C2 bulk trim
1шт.
23
NSS
NOT SOLD SEPARAT
TRIM - left-hand inside edge to cab, 14-3/4 inch, cut from 1330108C2 bulk trim
1шт.
23
NSS
NOT SOLD SEPARAT
TRIM - vertical flange under right-hand door, 6 inch, cut from 1330108C2 bulk trim
1шт.
24
1288795C2
SEAL
- throttle lever
1шт.
25
1301236C1
SEALING STRIP
- 31 inch (787 mm) long
2шт.
26
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
If used Hex Flg, 5/16"-18 x 1", Serr
6шт.
26
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch, if used
6шт.
27
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
6шт.
1330108C2
SEAL ASSY.
TRIM - edge, bulk 50 foot roll
1шт.
Выбрано товаров: 28
