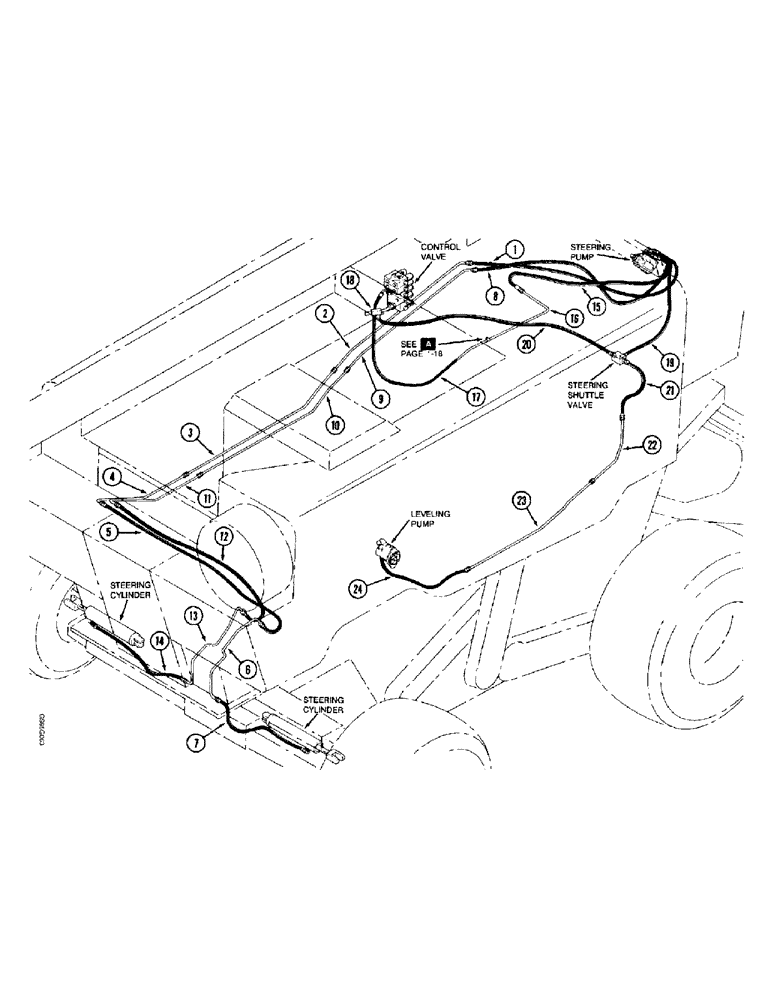

Запчасти Case IH 1670 (1-16) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX
№
Артикул
Название
Примечание
Количество
1
Left-Hand Steering Hose, Page 5-7
1шт.
2
Upper Outer Steering Tube, Page 5-7
1шт.
3
Lower Outer Steering Tube, Page 5-7
1шт.
4
Outer Steering Tube, Page 5-7
1шт.
5
Hydraulic Steering Hose, Page 5-7
1шт.
6
Right-Hand Steering Tube, Page 5-7
1шт.
7
Steering Hose, Page 5-7
1шт.
8
Right-Hand Steering Hose, Page 5-7
1шт.
9
Upper Inner Steering Tube, Page 5-7
1шт.
10
Lower Inner Steering Tube, Page 5-7
1шт.
11
Inner Steering Tube, Page 5-7
1шт.
12
Hydraulic Steering Hose, Page 5-7
1шт.
13
Left-Hand Steering Tube, Page 5-7
1шт.
14
Steering Hose, Page 5-7
1шт.
15
Steering Hand Pump Return Hose, Page 5-5
1шт.
16
Steering Return Tube, Page 5-5
1шт.
17
Steering Return Hose, Page 5-5
1шт.
18
Steering Return Tube, Page 5-5
1шт.
19
Hydraulic Steering Hose, Page 5-5
1шт.
20
Steering Pressure Hose, Page 5-5
1шт.
21
Steering Pressure Hose, Page 5-5
1шт.
22
Front Steering Pressure Tube, Page 5-5
1шт.
23
Rear Steering Pressure Tube, Page 5-5
1шт.
24
Steering Pressure Hose, Page 5-5
1шт.
Выбрано товаров: 24
